Dante Network Interface for Eclipse Matrix Systems

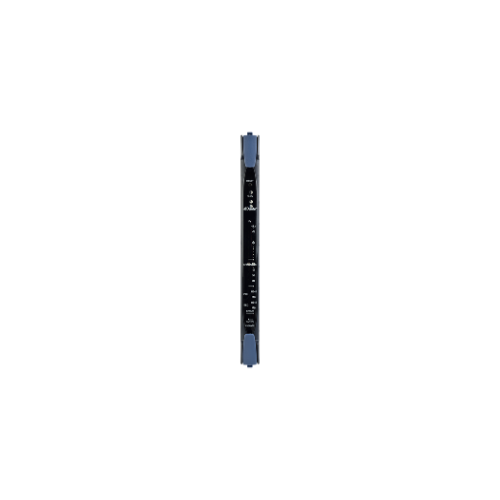

The E-DANTE64-HX is a high capacity Dante interface card designed for Clear-Com Eclipse HX matrix intercom systems. It enables seamless integration with Dante audio networks and third party audio equipment, allowing flexible routing of audio signals across professional broadcast and production environments.

High Capacity Audio Connectivity

The card provides up to 64 Dante audio ports when operating at 44.1kHz or 48kHz sample rates. When running at 96kHz, the interface supports up to 32 ports. This flexible configuration allows the card to adapt to different system requirements and audio network infrastructures.

Multi Network Integration

The E-DANTE64-HX supports connectivity with Dante, AES67, and SMPTE 2110-30 audio networking standards. It enables direct interfacing with a wide range of broadcast and professional audio devices while also allowing high capacity intelligent linking between multiple Eclipse matrix frames.

Redundant Network Connectivity

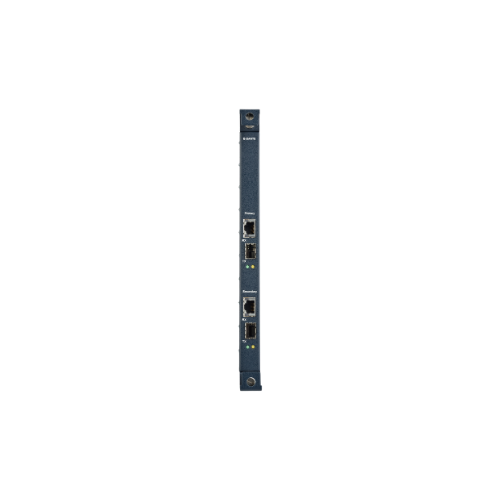

Dual network connections provide primary and secondary LAN interfaces, supporting both RJ45 and SFP connections. This redundancy ensures stable and reliable communication in mission critical environments such as broadcast studios, live productions, and large scale communication systems.

Configuration with EHX Software

The card is fully configured and managed through the EHX configuration software used by Eclipse HX matrix systems. Administrators can control channel allocation, routing, and integration with Dante audio networks directly through the centralized system interface.
