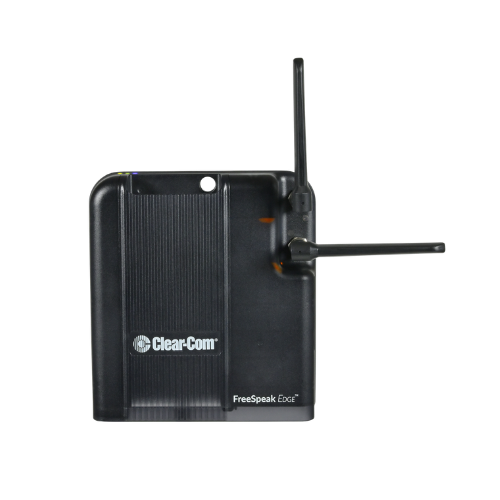

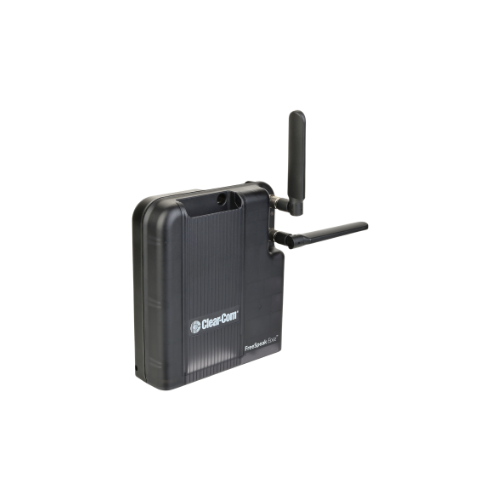

Clear-Com FSE-TCVR-50-IP Transceiver Antenna

Clear-Com FSE-TCVR-50-IP Transceiver Antenna

Clear-Com Accessories

Professional broadcast product designed for reliable production, streaming, and modern media workflows.

Genuine
Product

Official
Warranty

Technical
Support

Fast
Delivery

Key Features

Key Features

5GHz wireless transceiver for FreeSpeak Edge system
Supports up to 10 beltpacks per transceiver
Scalable up to 64 transceivers and beltpacks per system
Dual redundant radios for reliable communication
Separate radios for RF communication and radar scanning
AES256 encryption for secure communication

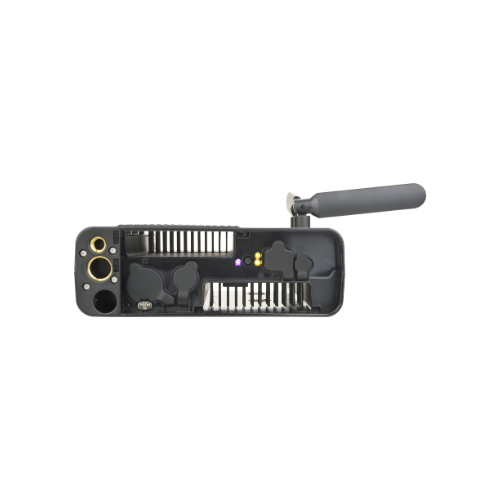

Dual network connectivity with RJ45 and SFP fiber
Power-over-Ethernet supports up to 100m
IP53 rated for dust and water resistance

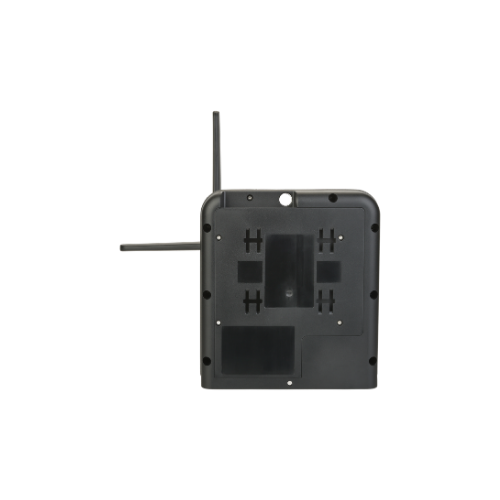

Flexible mounting options, including wall, mic stand, and tripod

Pricing Dhs. 0.00

Request a Quote

Secure checkout. Authorized partner. 100% genuine products.

Details that matter

Features & Specifications

Explore the features, technical details, and everything you need to know about this product.

Need help choosing? Talk to our experts →

Product Overview +

Overview

The Clear-Com FSE-TCVR-50-IP is an advanced IP transceiver antenna designed for the FreeSpeak Edge wireless intercom system. It enables high-performance duplex communication by linking beltpacks to the Eclipse HX matrix system via IP infrastructure.

System Capability

Each transceiver supports up to 10 beltpacks, with scalability up to 64 transceivers and 64 beltpacks per E-IPA-HX card. Larger systems can support up to 200 beltpacks when integrated with an Eclipse HX matrix.

Performance

Operating in the 5GHz spectrum, the transceiver delivers reliable communication even in complex RF environments. Dual redundant radios and OFDM modulation ensure stable connections with minimal interference.

Connectivity & Integration

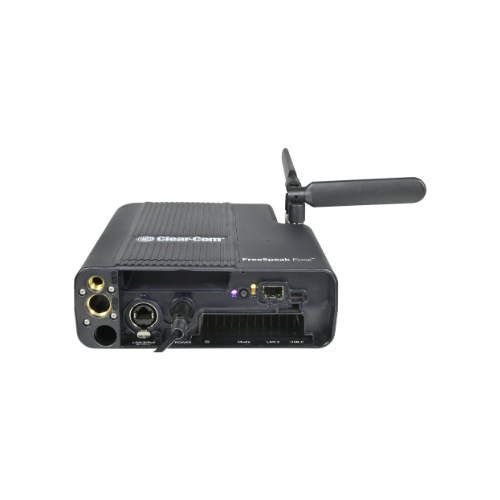

The unit supports dual network connections including etherCON RJ45 and high-speed SFP fiber. It integrates seamlessly with FreeSpeak Edge base stations, Arcadia Central Station, and Eclipse HX systems.

Design & Durability

With an IP53 rating, the transceiver is protected against dust and light water exposure. Multiple mounting options make it adaptable for studio, broadcast, and live event environments.

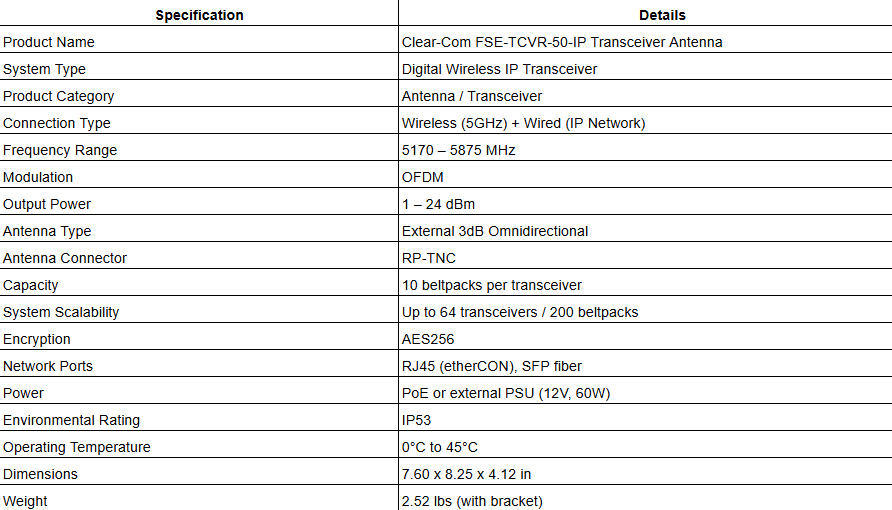

Technical Specifications +

technical specifications
