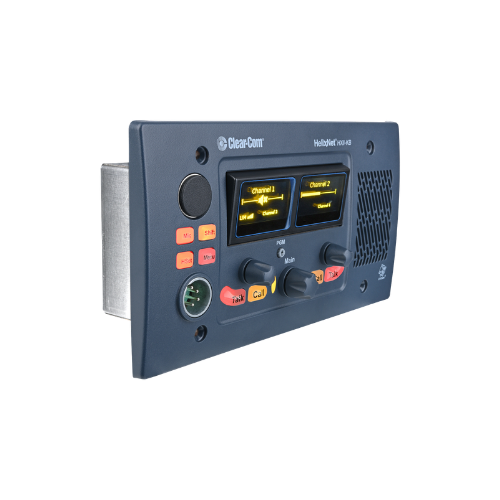

Compact Flush-Mount Speaker Intercom Station

The HXII-KB speaker station is a professional 4-gang flush-mountable intercom user station designed for fixed installations in broadcast and production environments. Its compact design allows it to be integrated into walls, control panels, or equipment racks.

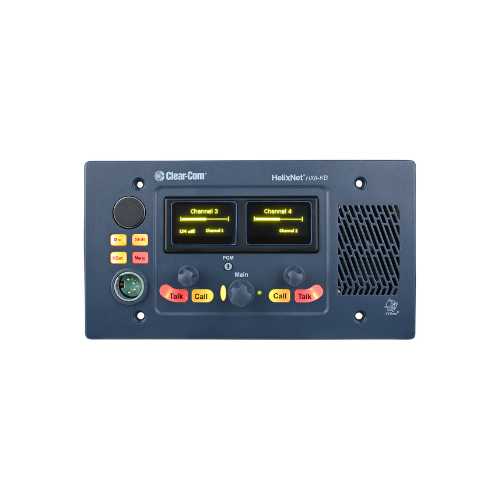

Clear OLED Displays and Backlit Controls

The front panel features bright OLED displays and illuminated keys that provide clear visual feedback. Operators can easily identify channels, communication states, and system status even in low-light control rooms.

Flexible Communication with Headset or Speaker

Users can communicate using either a connected headset or the integrated loudspeaker and microphone. This flexibility allows operators to switch between private and hands-free communication depending on their workflow.

Multi Channel Communication Capability

The station includes two assignable keysets that allow direct access to communication channels. With the shift page function, users can expand operation to four channels while maintaining simple and intuitive controls.

Seamless Integration with HelixNet Systems

HXII-KB connects to HelixNet systems hosted by Arcadia or HMS-4X units. Through Ethernet or Powerline connections, the station becomes part of a scalable wired partyline network supporting multiple endpoints and channels.

Easy Configuration and System Management

Configuration is handled through the Core Configuration Manager browser interface. Administrators can manage channel assignments, update firmware, and monitor system performance from a centralized management interface.
