Compact Interface Module Frame

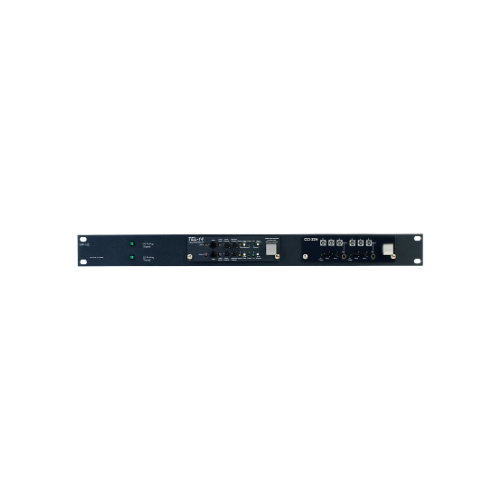

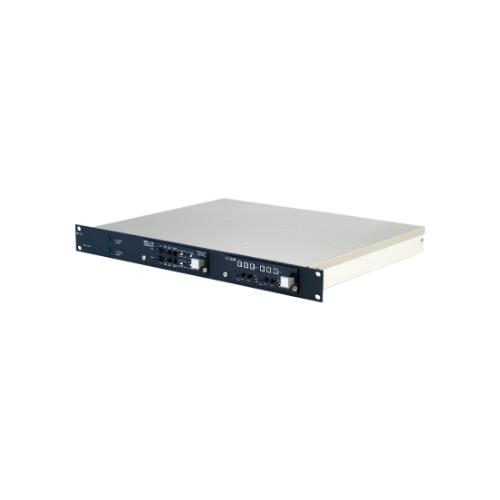

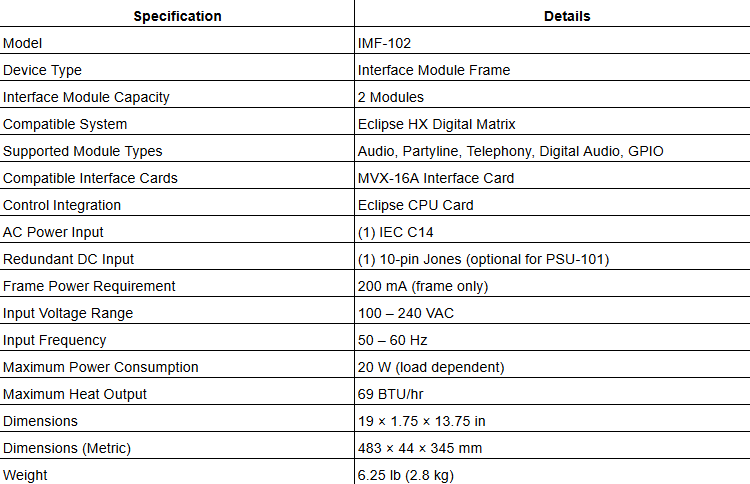

The IMF-102 is a compact 1RU frame designed to host two specialty interface modules for Eclipse HX digital matrix intercom systems. It provides a structured and efficient way to integrate external audio, communication, and control devices with the intercom infrastructure.

Flexible System Connectivity

The frame supports a wide variety of interface modules including line-level audio, 2-wire partyline systems, telephone interfaces, digital audio modules, and GPIO control interfaces. This flexibility allows system integrators to connect the intercom matrix to a broad range of external broadcast and communication equipment.

Seamless Eclipse HX Integration

Audio interface modules installed in the IMF-102 operate through the MVX-16A interface card, enabling reliable four-wire audio connectivity with the Eclipse HX matrix. Control modules such as GPIO interfaces can connect through the Eclipse CPU card for system control and automation tasks.

Scalable Deployment Options

Interface modules can be installed directly in Eclipse HX frames or in external frames like the IMF-102. This flexibility allows system designers to scale installations depending on the complexity of the broadcast environment or communication network.

Redundant Power Capability

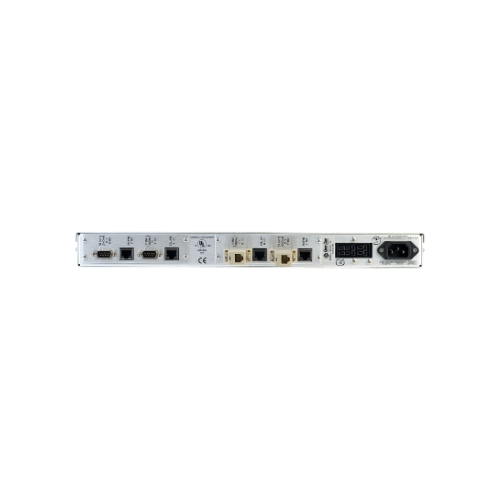

The frame includes an internal power supply and supports optional redundant power through a DC input connection. This ensures reliable operation in mission-critical communication environments such as live production, broadcasting, and large-scale event control systems.
