Two-Channel Communication

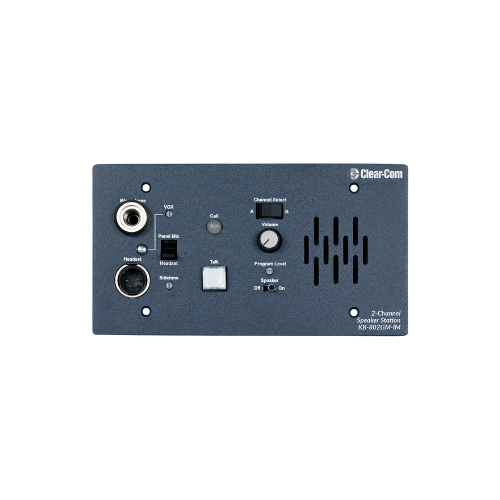

The Clear-Com KB-802GM-IM is a remote speaker intercom station designed for Clear-Com Encore partyline systems. It allows users to select between two communication channels and talk or listen on the selected line.

Flexible Audio Options

Users can communicate through a gooseneck microphone, headset microphone, handset, or push-to-talk mic. The unit also includes a built-in loudspeaker for direct monitoring without requiring a headset.

VOX Voice Activation

The station features VOX circuitry that automatically detects speech and adjusts microphone and speaker levels. This helps reduce acoustic feedback while maintaining natural voice communication.

Call Signaling and Monitoring

The KB-802GM-IM provides visual LED indicators and optional audible call alerts to notify users of incoming calls. Separate controls allow adjustment of speaker level and program audio monitoring.

Flexible Installation

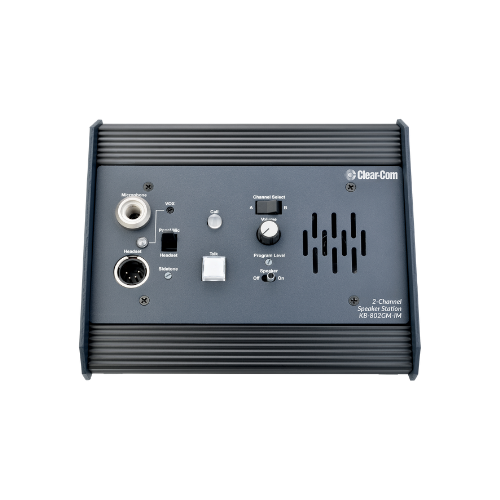

The station can be wall-mounted, console-mounted, or installed in an optional V-BOX enclosure for desktop or portable use. Optional 4-wire daughter boards allow integration with other audio routing systems.

Marine-Certified Reliability

Built for demanding environments, the KB-802GM-IM meets DNVGL maritime certification standards and is designed for reliable operation in industrial and marine installations.
