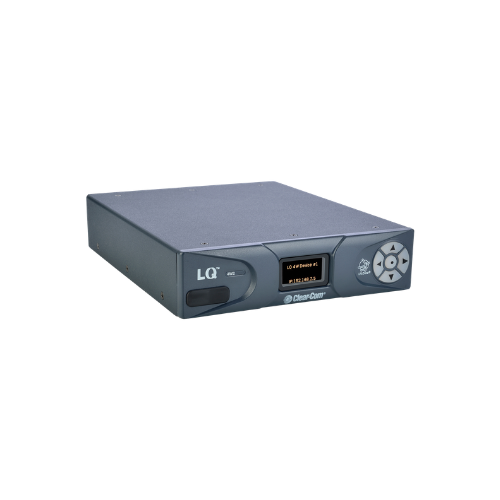

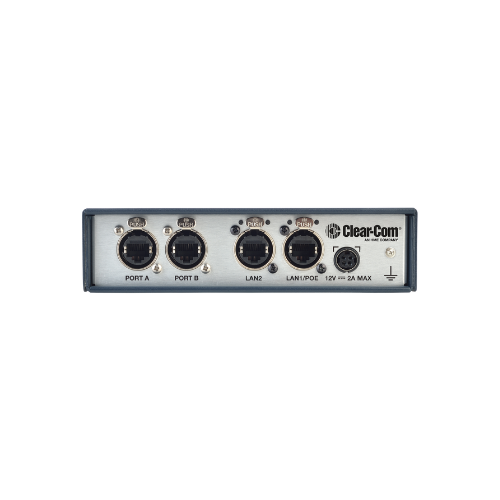

4-Wire Analog Interface Connectivity

The Clear-Com LQ-4W2 provides two professional 4-wire analog interface ports designed for connecting external audio systems, intercom panels, and broadcast equipment to modern IP-based communication networks.

Networked Intercom Communication

Using LAN, WAN, or internet infrastructure, the LQ-4W2 enables intercom systems to communicate across remote locations while maintaining reliable low-latency audio transport.

Decentralized Audio Mixing Architecture

Clear-Com’s decentralized I.V. Core technology converts incoming audio into Ethernet streams that are intelligently routed and mixed across connected devices, removing the need for a central processing hub.

Link Group System Expansion

Multiple LQ interfaces can be linked together to form a non-blocking Link Group with up to six devices. This architecture allows organizations to build scalable communication systems across multiple locations.

Virtual Client Integration

The interface supports Agent-IC mobile clients and Station-IC desktop clients, allowing users to connect to intercom channels remotely using smartphones, tablets, or computers.

SIP and Matrix System Compatibility

LQ-4W2 can integrate with SIP telephone systems as well as Clear-Com Eclipse HX matrices and Arcadia central stations, enabling communication between intercom users and external voice networks.

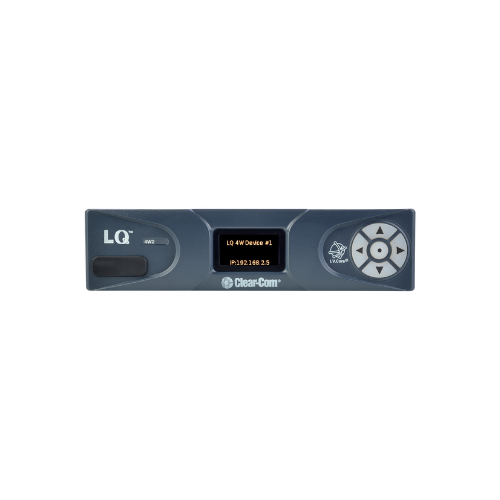

Easy Configuration and Monitoring

The device includes a front-panel OLED display for quick status checks and basic configuration. Full system setup, monitoring, and channel management are handled through the browser-based Core Configuration Manager.
