4-Wire Audio and GPIO Interface

The Clear-Com LQ-4WG2 provides two professional 4-wire analog interface ports combined with GPIO functionality. This allows the system to connect external audio equipment and control devices while enabling logic inputs and relay outputs for automation or event triggering.

Networked Intercom Communication

The LQ-4WG2 enables intercom communication across LAN, WAN, or internet networks. Audio, call signaling, panel communication, and logic signals can be transported between remote systems while maintaining high reliability.

Decentralized Audio Routing

Using Clear-Com’s decentralized I.V. Core technology, incoming audio is converted into Ethernet streams and intelligently routed to connected interface ports. This architecture removes central bottlenecks and allows scalable system expansion.

Link Group System Expansion

Multiple LQ devices can be linked together to form a Link Group with up to six units. This design enables non-blocking routing of channels and direct connections across geographically distributed communication systems.

Virtual Client Connectivity

The system supports Agent-IC mobile clients and Station-IC desktop clients, allowing users to connect to intercom channels remotely from smartphones, tablets, or computers over wired or wireless networks.

Integration with SIP and Matrix Systems

The LQ-4WG2 can integrate with third-party SIP telephone systems and Clear-Com platforms such as Eclipse HX and Arcadia central stations, enabling communication between intercom systems and external voice networks.

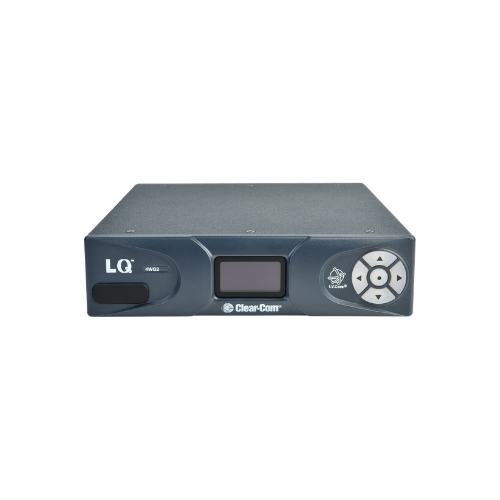

Simple Configuration and Monitoring

The device includes an OLED front panel display for quick status checks and network configuration. Full system setup and monitoring are managed through the browser-based Core Configuration Manager.
