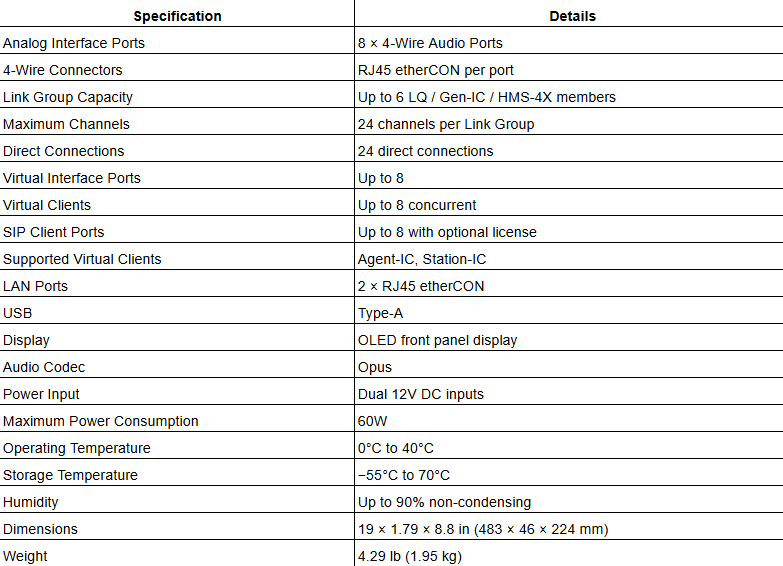

Eight 4-Wire Analog Interface Ports

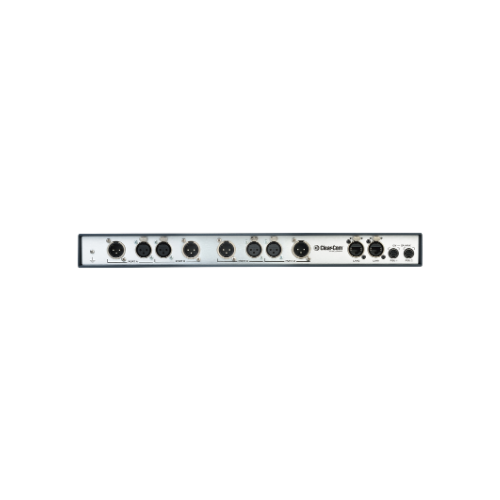

The Clear-Com LQ-R4W8 provides eight professional 4-wire audio interface ports using RJ45 etherCON connectors. These ports allow integration with broadcast intercom systems, audio matrices, and other line-level communication devices.

Networked Intercom Connectivity

The interface enables intercom communication across LAN, WAN, or internet infrastructures. Audio streams, call signaling, remote mic kill commands, logic signals, and panel communications can be transported over IP networks.

Decentralized Audio Routing Technology

Using Clear-Com’s I.V. Core decentralized architecture, incoming audio is converted into Ethernet streams and intelligently routed to the associated interface ports. This design enables scalable communication systems without centralized audio processing.

Link Group System Expansion

Up to six LQ devices can be connected together into a Link Group. This allows non-blocking routing and mixing of channels and direct connections across multiple locations and intercom systems.

Virtual Client Support

The LQ system can host Agent-IC mobile clients and Station-IC desktop clients. Users can connect remotely to intercom channels using smartphones, tablets, or computers through Ethernet, Wi-Fi, or cellular networks.

Integration with Matrix and SIP Systems

The interface supports I.V. Direct connectivity to Eclipse HX matrices and Arcadia central stations. Optional SIP client ports allow integration with third-party VoIP telephone systems for extended communication workflows.

Easy Configuration and Monitoring

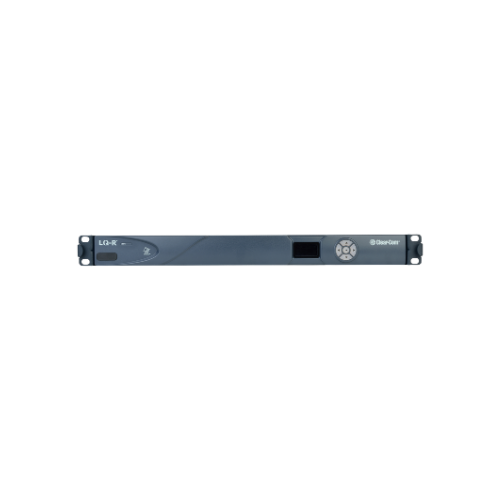

The device includes a front-panel OLED display for quick status information and system settings. Full system configuration, monitoring, and management are performed using the browser-based Core Configuration Manager.
