Four-Channel Program and Talent Routing

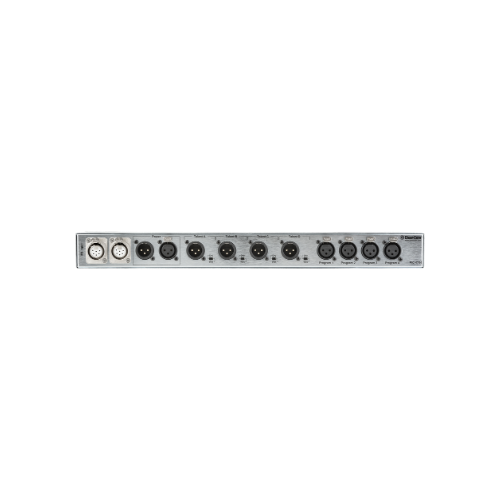

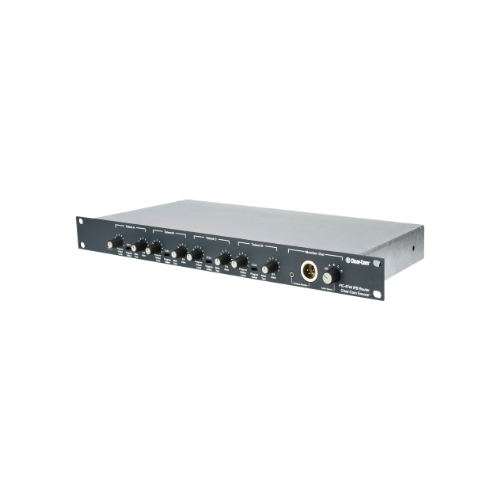

The Clear-Com PIC-4744 is a four-channel program input combiner designed to distribute program audio to multiple talent channels. It provides four analog program inputs and four partyline-level talent outputs, allowing flexible routing of audio sources to individual IFB channels.

Flexible Audio Source Selection

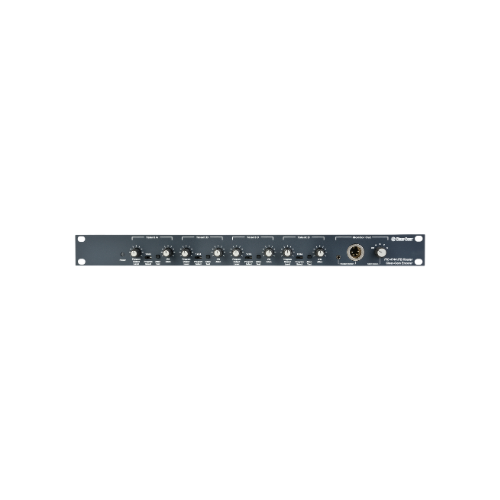

Each talent output can select from four available program sources, giving operators the ability to assign the correct audio feed to each talent position. The front panel includes variable trim controls that allow precise adjustment of program audio levels for each output channel.

Integration with External Audio Systems

The PIC-4744 includes Wet/Dry switching, enabling integration with third-party wireless IFB systems, mixing consoles, recording devices, or other audio equipment. This makes it suitable for broadcast studios, live production environments, and professional communication systems.

Monitoring and Visual Indicators

Tally lights provide a clear visual indication of IFB channel activity, while the ALL IFB button allows operators to access all IFB channels simultaneously. The unit also includes headset monitoring ports on the front panel for quick monitoring and troubleshooting.
