Clear-Com V12LD 12-Lever Keypanel

Clear-Com Matrix

Professional broadcast product designed for reliable production, streaming, and modern media workflows.

Genuine
Product

Official
Warranty

Technical
Support

Fast
Delivery

Key Features

Key Features

1RU rackmount keypanel with 12 lever talk/listen switches
24 dedicated up/down level control buttons for audio adjustment
Yellow OLED displays for improved visibility and contrast
Horizontal or vertical font display options
Listen Again feature to replay incoming calls
Fast key assignment using scroll lists or keypad
Digital signal processing for audio routing, EQ, and dynamics
Compatible with Clear-Com Eclipse HX matrix systems
Optional AES audio interfaces for expanded connectivity

Pricing Dhs. 0.00

Request a Quote

Secure checkout. Authorized partner. 100% genuine products.

Details that matter

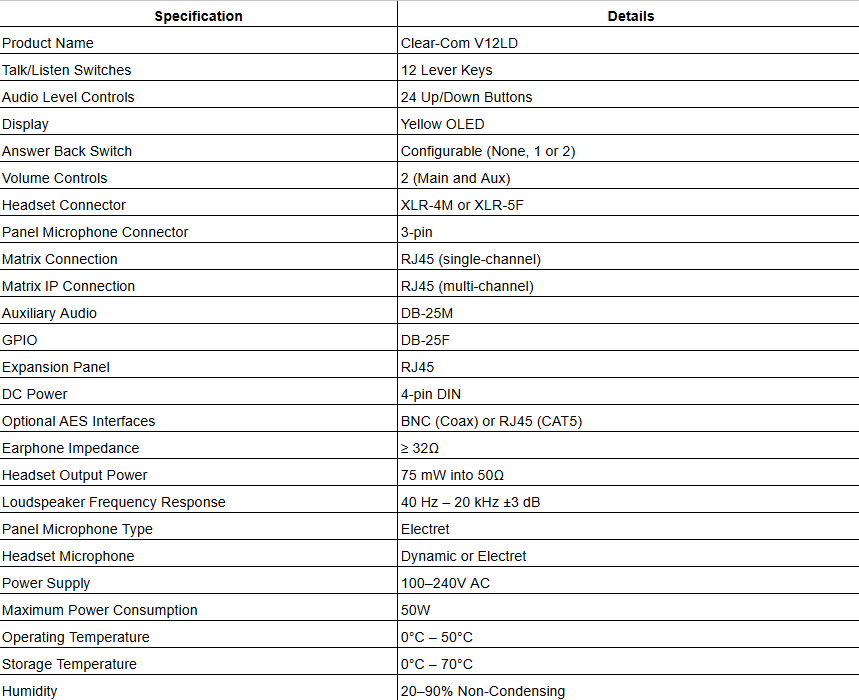

Features & Specifications

Explore the features, technical details, and everything you need to know about this product.

Need help choosing? Talk to our experts →

Product Overview +

Professional Rackmount Intercom Control

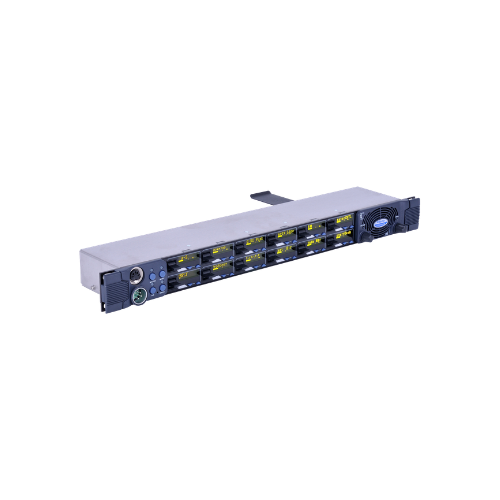

The Clear-Com V12LD 12-Lever Keypanel is a 1RU rackmount intercom control panel designed for use with Eclipse HX matrix frames. With 12 lever-based talk/listen switches and dedicated level control buttons, the panel provides reliable and precise communication control for broadcast studios, live production environments, and technical operations.

Lever Controls with Individual Audio Adjustment

Each communication channel is operated using a lever switch for talk and listen control, combined with individual up and down buttons to adjust audio levels. This allows users to create personalized mixes and manage multiple channels simultaneously with accuracy and ease.

High Visibility OLED Displays

The panel includes yellow OLED displays that provide clear channel labeling and status information. These displays support horizontal or vertical font orientation, allowing flexible installation in different rack environments while maintaining excellent readability.

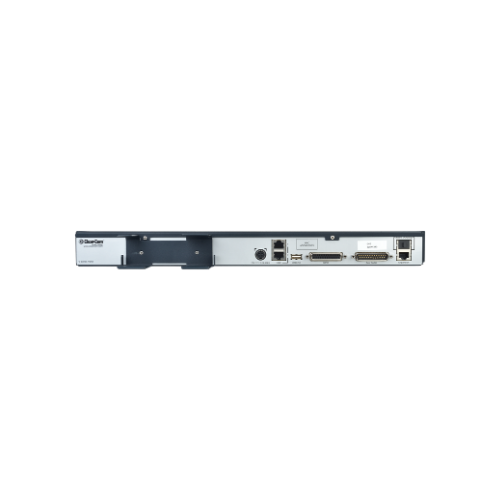

Advanced DSP and Flexible Connectivity

The Clear-Com V12LD includes built-in digital signal processing that enables advanced audio routing, equalization, and dynamics control. It supports multiple matrix connection options including direct matrix connections, IP networking, and optional AES interfaces, making it suitable for complex professional communication systems.
