Expanded Key Control for Intercom Systems

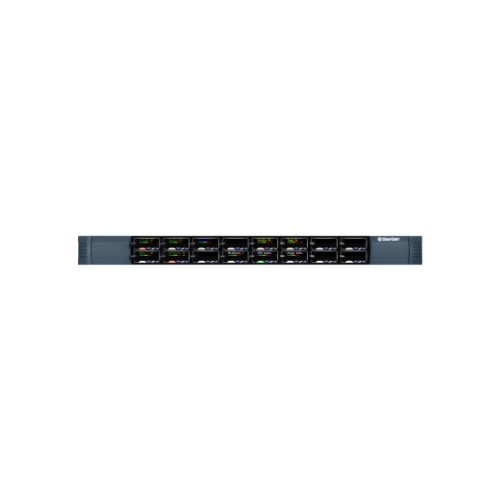

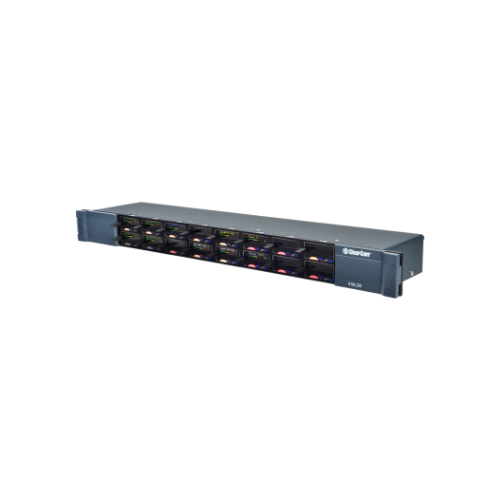

The Clear-Com VI-EXPB-16L 16-Key Lever Expansion Panel is designed to extend the functionality of V-Series IrisX keypanels by adding additional programmable keys. With 16 lever-style keysets and enhanced displays, it allows operators to access more communication channels, groups, and system controls without switching between pages.

High Visibility Displays and Status Indicators

Each keyset includes a 10-character high-brightness color display along with a visual volume bar and multi-color tally light. These indicators provide instant feedback on system status, assigned functions, and communication activity, improving workflow efficiency in demanding environments.

Seamless Integration with IrisX Keypanels

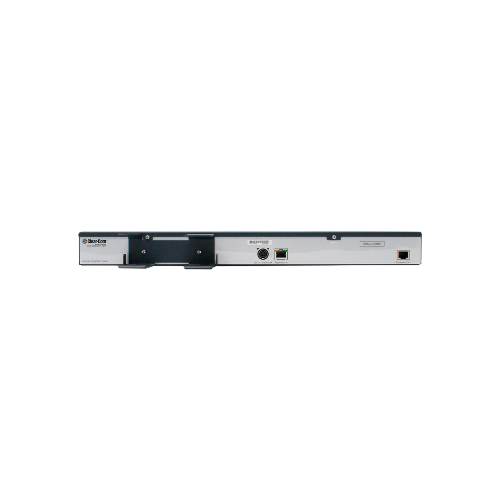

The Clear-Com VI-EXPB-16L connects directly to compatible IrisX keypanels using expansion ports. This enables seamless scaling of communication systems in broadcast studios, live production environments, and mission-critical operations where additional user controls are required.

Flexible Control and Advanced Features

When used with Clear-Com Eclipse Digital Matrix systems, the expansion panel enables access to advanced features such as key stacking, shift pages, group sorting, and configurable system controls. Operators can manage channels, IFB feeds, roles, and other communication resources through a flexible and customizable interface.
