Compact Pushbutton Intercom Panel

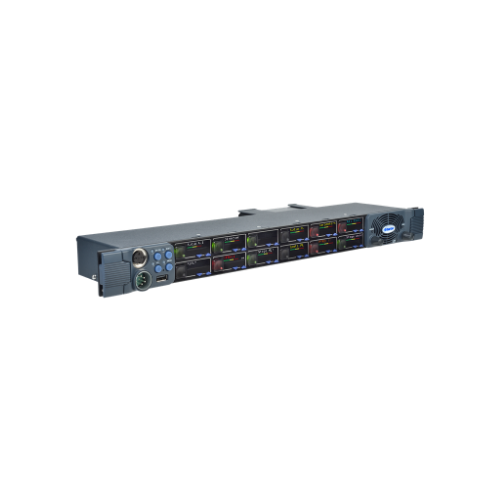

The Clear-Com VI-PNLB-12P is a professional 1RU rackmount intercom keypanel designed for broadcast studios, live production environments, and control rooms. It features 12 programmable pushbutton keysets that allow operators to quickly communicate with channels, users, or system functions.

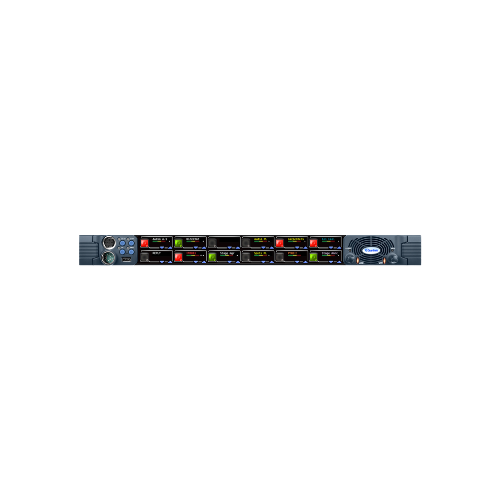

Each keyset includes a high-brightness 10-character color display, a visual volume indicator, and a tally light that clearly shows the status of communication channels.

Efficient Communication Control

The panel allows communication with individual users, groups, IFB channels, and system roles. Pushbutton keysets provide quick access to talk and listen functions, allowing operators to manage communications efficiently during live operations.

Advanced system capabilities such as key stacking, shift pages, and separate talk and listen assignments help simplify complex communication workflows.

Flexible Connectivity Options

The Clear-Com VI-PNLB-12P supports several connection types to integrate with professional intercom infrastructures.

The panel can connect through LAN network ports for AES67 capable network communication or through analog connections directly to Eclipse MVX interface cards. These options allow flexible deployment in both local and distributed communication networks.

Integrated Audio and Control Interfaces

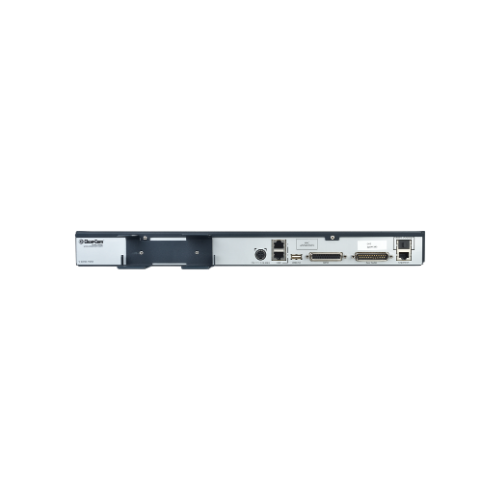

The rear panel includes multiple audio and control interfaces that allow the connection of headsets, microphones, and external devices.

Available connections include headset ports, gooseneck microphone input, auxiliary line-level audio inputs and outputs, GPIO logic interfaces, and expansion panel connectivity for larger intercom systems.

Advanced Features with Eclipse Systems

When used with an Eclipse Digital Matrix system, the panel supports additional advanced features including key stacking, expansion panel support, dynamic routing, and remote IFB control.

The integrated DSP mixer provides audio routing, filtering, and dynamics processing to ensure reliable and clear communication during critical operations.
