High-Density Professional Keypanel

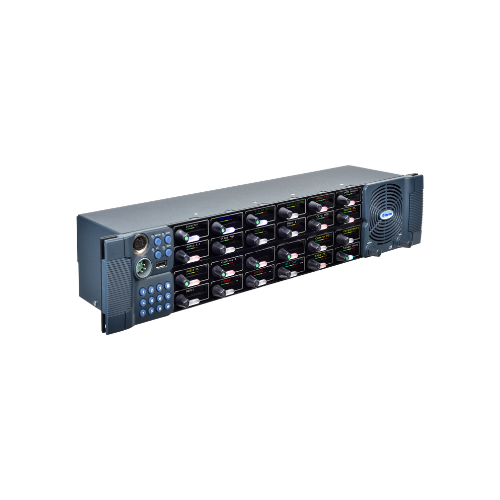

The Clear-Com VI-PNLB-24R is a 2RU rackmount intercom keypanel designed for professional communication environments such as broadcast studios, production control rooms, and live event operations. It provides 24 programmable rotary keysets that allow operators to manage multiple communication channels, users, and system functions from a single interface.

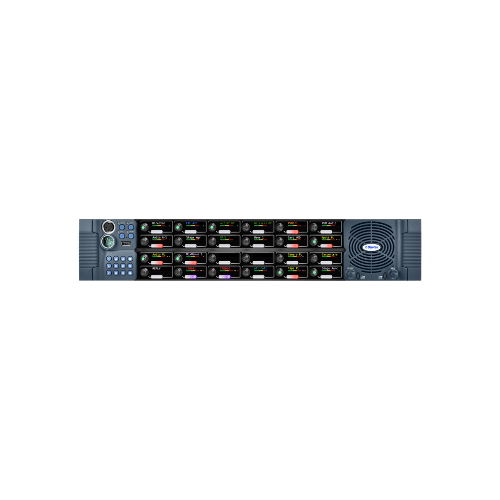

Each keyset features a high-brightness 10-character color display with a volume indicator and tally light, allowing users to quickly identify active channels and communication status.

Flexible Communication Management

The panel supports communication with individual users, groups, IFB channels, and system controls. Rotary level controls allow quick adjustment of audio levels while integrated talk buttons enable immediate communication access.

Features such as key stacking, shift pages, and separate talk and listen assignments allow operators to efficiently manage complex communication workflows.

Multiple Connectivity Options

The Clear-Com VI-PNLB-24R supports several connection types to integrate easily with professional intercom systems.

It can connect through LAN network ports for AES67 capable systems or directly through analog connections to Eclipse MVX cards. These connectivity options allow the panel to operate in both local installations and distributed network communication systems.

Integrated Audio and Control Interfaces

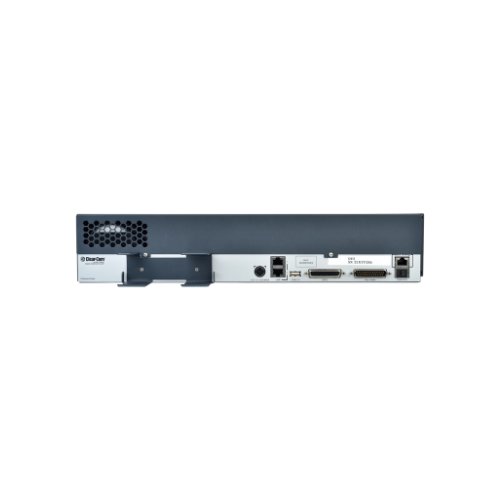

The rear panel provides several audio and control interfaces for connecting headsets, microphones, and external devices. These interfaces allow seamless integration with broadcast equipment and communication infrastructure.

Available connections include headset ports, gooseneck microphone input, auxiliary audio inputs and outputs, GPIO logic interfaces, and expansion panel connectivity.

Advanced Features with Eclipse Systems

When used with an Eclipse Digital Matrix system, the panel supports additional advanced capabilities such as key stacking, expansion panel integration, dynamic routing, and remote IFB control.

The built-in DSP mixer provides audio routing, filtering, and dynamics processing to ensure clear and reliable communication in demanding production environments.
