Reliable Broadcast-Quality Conversion

The Datavideo DAC-8PA is a precision-engineered SDI to HDMI converter designed for the rigors of professional broadcast and live production. Supporting resolutions up to 1080p60, this unit serves as a critical bridge between high-end SDI cameras and affordable HDMI monitoring solutions. As a "straight converter," it maintains the original frame rate and resolution of your source, ensuring that what you see on your HDMI display is a faithful representation of your SDI feed.

Flexible Audio Management

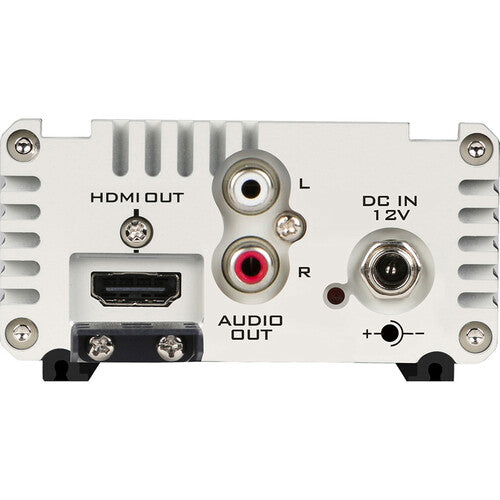

One of the standout features of the DAC-8PA is its flexible audio handling. While it automatically embeds SDI audio into the HDMI output, it also allows for dedicated audio de-embedding. By utilizing the dual RCA connectors, you can send a clean analog audio feed to an external mixer or sound system. With downloadable utility software, professionals can even toggle between SMPTE and EBU audio standards, ensuring compliance with global broadcast requirements.

Optimized Signal Integrity

Transmission distance is never a hurdle with the DAC-8PA. The converter features built-in signal equalization and re-clocking technology. This process repairs incoming data packets that may have been degraded by long cable runs, delivering a "re-generated" signal to the HDMI port. The addition of a 3G-SDI loop-through output further enhances your workflow, allowing you to daisy-chain your signal to other professional equipment without the need for a separate distribution amplifier.

Durable and Field-Ready

True to the Datavideo DAC series reputation, the DAC-8PA is housed in a rugged metal chassis built for long-term reliability. Its compact footprint makes it an easy addition to any technician's field kit or DIT cart. The unit also features a support tab on the HDMI port to prevent accidental disconnections during high-pressure live events, making it a "set and forget" solution for houses of worship, corporate studios, and mobile production units.
