High-Performance 4K HDMI to SDI Bridging

The Datavideo DAC-9P 4K is the definitive tool for integrating HDMI 2.0 sources—such as 4K cameras, laptops, and media players—into a professional 12G-SDI environment. Supporting both DCI 4K and UHD 4K resolutions at up to 60fps, this converter maintains the highest broadcast standards. Its dual 12G-SDI outputs provide the redundancy and flexibility needed for live events, allowing you to send a signal to a primary switcher and a secondary backup or recorder without extra splitters.

Advanced Audio and Loop-Through Workflow

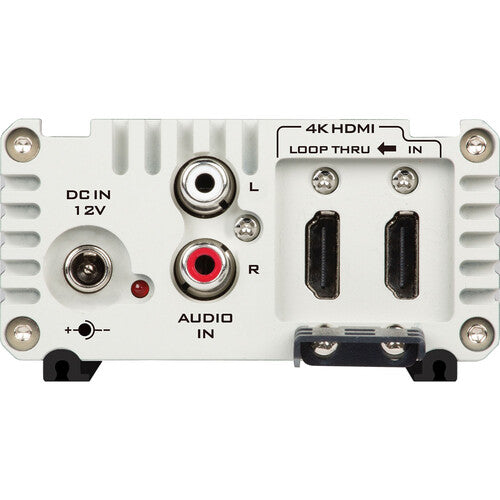

Designed with the field professional in mind, the DAC-9P 4K is more than just a video converter; it is a versatile audio embedder. Via the manual toggle, you can select between the original HDMI audio or an external 2-channel analog feed through the RCA inputs. Furthermore, the HDMI loop-thru output ensures that your source signal can still be viewed on a local HDMI monitor or TV, keeping your setup streamlined and reducing the need for additional distribution amplifiers.

Stable Transmission for Long Cable Runs

One of the primary challenges of 4K production is signal integrity over distance. The DAC-9P 4K addresses this with an integrated re-clocking system. By regenerating the video signal at the point of conversion, the unit ensures lower jitter and higher signal fidelity. This allows for significantly longer SDI cable runs than standard converters, making it an ideal choice for large-scale venues, stadiums, and houses of worship.

Rugged, Reliable, and Ready for Work

Housed in Datavideo’s signature heavy-duty aluminum casing, the DAC-9P 4K is built to withstand the rigors of travel and constant field use. The rugged metal housing not only protects the internal components but also facilitates low heat dissipation, allowing for hours of continuous operation in demanding environments. With its compact footprint and included 12V power supply, it fits perfectly into any technician's kit or a 2RU rack-mount frame.
