Broadcast-Grade 4K Production in a Flight Case

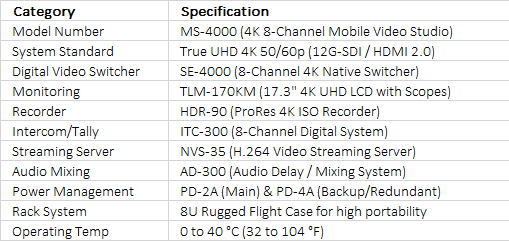

The Datavideo MS-4000 is a powerhouse mobile production studio designed for the multimedia era. Housed in a compact and ultra-rugged 8U flight case, it offers a complete 4K workflow—from switching and audio mixing to intercom and recording. This "studio-in-a-box" is specifically engineered for professional broadcasters who require 12G-SDI reliability and UHD 4K quality for live sports, high-end corporate events, and remote studio productions.

Intuitive Control and Visual Detail

At the heart of the MS-4000 is the SE-4000 switcher, which blends a traditional physical control panel with a responsive 5-inch color LCD touchscreen. This hybrid interface allows for effortless management of quad-split compositions, PiP overlays, and logo insertions. Monitoring is handled by the 17.3-inch TLM-170KM, which provides 4K resolution and essential scopes, ensuring your visual output meets the highest broadcast standards for clarity and color accuracy.

Master-Quality Capture and Global Streaming

The MS-4000 ensures your content is preserved and shared with excellence. The HDR-90 recorder captures master-quality ProRes 4K files or multiple HD ISO streams simultaneously, simplifying the post-production process. For live audiences, the NVS-35 encoder handles high-quality H.264 streaming. When combined with the system's ability to handle high-bitrate encoding, you can deliver smooth, professional-grade video to multiple platforms with total confidence.

Uncompromised Audio and Crew Coordination

Clear communication and pristine sound are the backbone of any successful show. The MS-4000 includes an 8-channel digital intercom system with four belt packs, providing a noise-free talkback environment for your crew. Audio is managed by the AD-300 mixer, which features an extensive suite of processing tools, including a 3-second delay, equalizer, and professional effects, ensuring that your audio is as polished and professional as your 4K visuals.
