The Future of 4K Broadcasting on Wheels

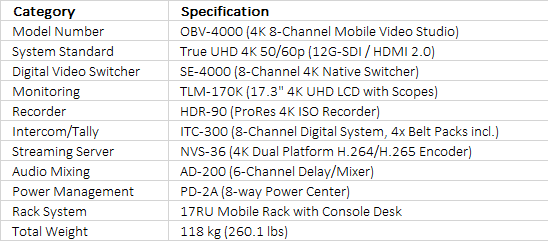

The Datavideo OBV-4000 is a top-tier, transportable 4K production suite that brings the capabilities of a major television network to a mobile footprint. Designed for the "omnimedia" generation, this 8-channel 12G-SDI system is housed in a rugged aluminum casing with a newly designed Console Desk. It is the perfect turnkey solution for professional broadcasters who need to capture, switch, record, and stream high-end 4K content from live sports, concerts, or remote studio locations.

Intuitive "One-Button-One-Function" Interface

Efficiency is critical in live environments. The heart of the OBV-4000 is the SE-4000 switcher, which combines a traditional physical control panel with a state-of-the-art 5-inch color LCD touchscreen. This interface allows directors to group complex functions into a single tap, managing chroma keys, PIP, and DSK effects instantaneously. With its built-in input scalers, you can mix 12G-SDI ENG cameras and HDMI 2.0 sources without resolution or frame rate penalties.

Master-Quality Recording and Advanced ISO Capabilities

For post-production excellence, the OBV-4000 utilizes the rack-mounted HDR-90. This 4K recorder captures in 10-bit ProRes 422, the gold standard for high-performance editing. Beyond 4K, it can function as a 4-channel HD ISO recorder, syncing all camera feeds with the same timecode. In a pinch, the HDR-90 can even serve as a secondary video switcher, allowing you to switch between cameras by simply tapping its integrated touchscreen.

Bulletproof SRT Streaming and dvCloud Integration

The OBV-4000 is built to conquer unreliable internet connections. The NVS-36 dual-streaming encoder supports the SRT protocol, which corrects for packet loss and jitter during long-distance transmissions. Seamlessly compatible with Datavideo’s dvCloud, the system can broadcast to 25+ platforms simultaneously. Whether you are producing a traditional landscape broadcast or a modern vertical stream for social media, the OBV-4000 ensures your message reaches your audience in pristine quality.
