Evertz 2406DT13-F2 Rugged Industrial RS-232/RS-485/RS-422 to Fiber Optic Transceiver (40km Single-Mode)

Evertz Signal Processing

Professional broadcast product designed for reliable production, streaming, and modern media workflows.

Genuine
Product

Official
Warranty

Technical
Support

Fast
Delivery

Key Features

Long-Distance Serial Transport: Extends RS-232, RS-485, and RS-422 data up to 25 miles (40km) over single-mode fiber.
Multi-Protocol Support: Auto-detects supported serial formats with data rates from 300–115,200bps.
High Node Capacity: Supports up to 128 RS-485/RS-422 nodes over coaxial runs up to 4,000ft (1.2km).
Rugged Construction: ABS enclosure supports extreme temperatures from -40°F to 185°F (-40°C to 85°C).
Circuit Protection: Provides 600W surge protection and 15kV ESD protection.
Flexible Power Input: Accepts 9–30V DC via 10-way terminal block; includes 100–240V AC to 9V DC adapter.
Dual Fiber Interfaces: Features dual SC single-mode fiber connections operating at 1310nm.

Pricing Dhs. 0.00

Request a Quote

Secure checkout. Authorized partner. 100% genuine products.

Details that matter

Features & Specifications

Explore the features, technical details, and everything you need to know about this product.

Need help choosing? Talk to our experts →

Product Overview +

Industrial-Grade Long-Haul Serial Transport

The Evertz 2406DT13-F2 is a ruggedized data transceiver engineered to extend bi-directional serial control signals across long distances using single-mode fiber optics. By converting fragile electrical serial lines to 1310nm optical signals, it overcomes the severe distance limits and ground loop/EMI vulnerability of copper connections—delivering reliable point-to-point communication up to 40 km (25 miles).

Multi-Protocol Flexibility & Hardened Protection

Built for harsh outdoor, industrial, or broadcast facility environments, the 2406DT13-F2 features a rustless ABS housing and operates across extreme temperatures (-40°C to 85°C). It auto-senses incoming data rates between 300 and 115,200 bps for RS-232, RS-422, or RS-485 networks. Internal 600W surge suppression and 15kV ESD protection safeguard sensitive edge electronics against power spikes and static discharges.

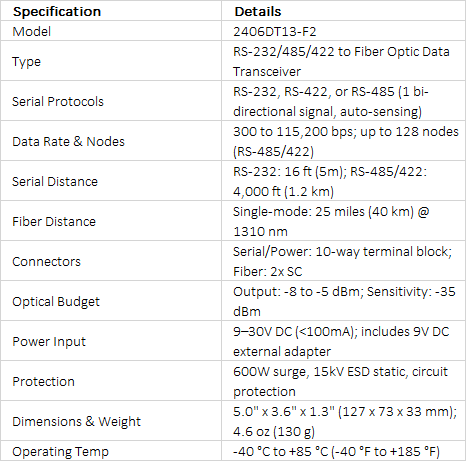

Technical Specifications +

technical specifications
