Evertz 2406ET13-F2 Rugged Industrial 10/100 Ethernet to Fiber Optic Media Converter (20km Single-Mode)

Evertz Signal Processing

Professional broadcast product designed for reliable production, streaming, and modern media workflows.

Genuine
Product

Official
Warranty

Technical
Support

Fast
Delivery

Key Features

Long-Distance Ethernet: Extends 10/100Base-TX Ethernet up to 12.4 miles (20km) over 100Base-FX single-mode fiber.
IEEE Compliance: Supports IEEE 802.3 and 802.3u standards with store-and-forward switching.
Smart RJ-45 Interface: Provides 10/100Mbps auto-negotiation, half/full-duplex, and Auto-MDI/MDIX.
Rugged Mounting: Features a rustless ABS enclosure with direct DIN-rail and wall/panel mounting.
Wide Environmental Range: Operates from -40°F to 185°F (-40°C to 85°C) with 0–90% non-condensing humidity.
Circuit Protection: Includes 600W surge protection, 15kV ESD protection, and TUV safety certification.
Flexible Power Input: Accepts 9–30V DC via 9-way terminal block; includes 100–240V AC to 9V DC adapter.
Dual Fiber Interfaces: Features dual SC single-mode fiber connectors with 1310nm optical operation.

Pricing Dhs. 0.00

Request a Quote

Secure checkout. Authorized partner. 100% genuine products.

Details that matter

Features & Specifications

Explore the features, technical details, and everything you need to know about this product.

Need help choosing? Talk to our experts →

Product Overview +

Industrial 10/100 Ethernet Optical Extension

The Evertz 2406ET13-F2 is an industrial-grade media converter engineered to bridge local 10/100Base-TX copper networks over single-mode fiber optics. By converting RJ-45 Ethernet signals into 1310nm optical transmissions via dual SC connectors, it enables secure, interference-free network extensions up to 20 km (12.4 miles) for remote broadcast gear, outdoor IP cameras, field production gear, and industrial control systems.

Hardened Deployment & Plug-and-Play Design

Built to withstand harsh environments, the 2406ET13-F2 features a rugged, rustless ABS enclosure with direct DIN-rail or panel-mounting options. The RJ-45 port offers auto-negotiation and Auto-MDI/MDIX, removing the need for crossover cables, while store-and-forward switching ensures optimal data integrity. Integrated 600W surge suppression and 15kV ESD protection safeguard connected equipment against transient voltages and static shocks.

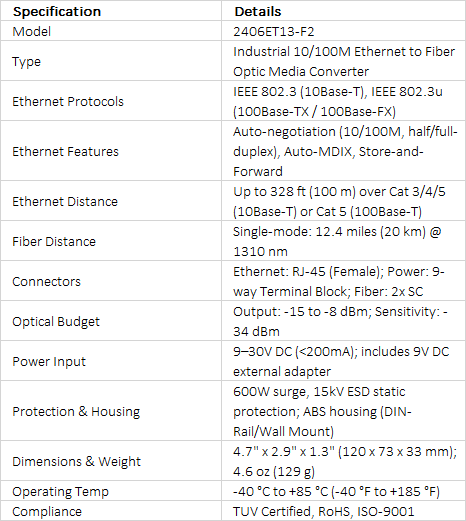

Technical Specifications +

technical specifications
