Evertz

Evertz 3025EMC 3G/HD/SD Master Control Switcher & Channel Branding Module

Evertz Signal Processing

Professional broadcast product designed for reliable production, streaming, and modern media workflows.

Genuine
Product

Official
Warranty

Technical
Support

Fast
Delivery

Key Features

Multi-Format SDI Processing: Supports 3G-SDI, HD-SDI, and SD-SDI with Program, Preset, and Emergency bypass paths.
4 Onboard Keyers: Provides four internal logo key layers, expandable to 16 with +EMG, supporting bugs, crawls, lower thirds, chimes, and snipes.
Optional 2D DVE: Supports 2-channel (+DVE-2D) or 4-channel (+DVE-2D-2) DVE for PiP, squeeze-backs, and transitions.
16-Channel Audio & MADI: Provides 16-channel embedded audio processing plus 4 MADI BNC/DIN inputs and outputs for mixing, shuffling, phase correction, and dual stereo voiceovers.
Bypass Relay Protection: Protects Program and Clean feed outputs during power or card failures.
Automation & Router Control: Supports M2100 and third-party serial protocols with crosspoint control for routers from 12 to 1024 inputs.
High-Density Frame Options: Supports EMX3-FR and EMX6-FR frames with hot-swappable modules and redundant power supplies.

Pricing Dhs. 0.00

Request a Quote

Secure checkout. Authorized partner. 100% genuine products.

Details that matter

Features & Specifications

Explore the features, technical details, and everything you need to know about this product.

Need help choosing? Talk to our experts →

Product Overview +

Complete Master Control & Branding Architecture

The Evertz 3025EMC is a master control switcher designed for broadcast playout facilities, television stations, and multichannel operations migrating across SD, HD, and 3G-SDI formats. Each single-slot card processes a complete Program and Preset switching path alongside a dedicated Emergency input for instant failover to safe feeds. Two independent Clean outputs provide clean feed distribution, while physical bypass relays ensure uninterrupted on-air broadcasting during unexpected hardware or power outages.

Graphics, DVE & Expanded Media Storage

Equipped with four standard key layers, the 3025EMC renders complex multi-layer graphics, static/animated bugs, dynamic text lower thirds, and time-synced audio chimes. Onboard media storage can be expanded using 8GB CompactFlash cards (+CF8G) or over Gigabit Ethernet via Network Attached Storage (+NAS) for unlimited archived asset access. Optional 2-channel or 4-channel 2D DVE engines deliver real-time picture-in-picture graphics independent of keyer layers.

Multi-Channel Audio & Panel Control

Audio processing features 16 channels of embedded SDI audio and 4 MADI inputs/outputs. Integrated DSP provides channel shuffling, mono-mixing, phase correction, and two stereo voice-over ducking channels with pre-hear preview. Operators control switching locally using custom 10-character LCD desktop/rackmount control panels or remotely via major automation systems.

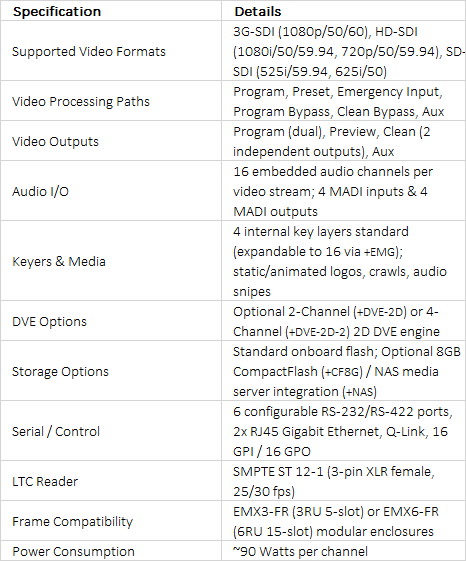

Technical Specifications +

technical specifications
