Evertz

Evertz 3025EMC 3G/HD/SD-SDI Master Control Switcher & Channel Branding Processor

Evertz Signal Processing

Professional broadcast product designed for reliable production, streaming, and modern media workflows.

Genuine
Product

Official
Warranty

Technical
Support

Fast
Delivery

Key Features

Multi-Format SDI Switching: Supports 3G-SDI (ST 424), HD-SDI (ST 292), and SD-SDI (ST 259) with Program and Preset paths.
Redundant Protection: Includes hardware bypass relays, emergency inputs, hot-swappable modules, and dual redundant power supplies.
Multi-Layer Branding: Provides 4 internal key layers for logos, lower-thirds, and crawls, expandable to 16 with NAS storage.
Optional 2D DVE: Supports 2- or 4-channel DVE engines for resizing, squeeze-backs, and PiP transitions.
Advanced Audio Processing: Handles 16 embedded audio channels and 4 MADI I/O ports with shuffling, mono mixing, phase correction, and stereo voice-overs.
Automation & Control: Supports serial automation, Evertz EQT/EQX router control, and customizable LCD pushbutton panels.
EMX Frame Compatibility: Single-slot design supports EMX3-FR 3RU/5-slot and EMX6-FR 6RU/15-slot frames.

Pricing Dhs. 0.00

Request a Quote

Secure checkout. Authorized partner. 100% genuine products.

Details that matter

Features & Specifications

Explore the features, technical details, and everything you need to know about this product.

Need help choosing? Talk to our experts →

Product Overview +

Mission-Critical Master Control Playout

The Evertz 3025EMC is a high-reliability master control switching and channel branding platform designed for broadcast facilities migrating across SD, HD, and 3Gb/s infrastructures. Built for continuous 24/7 operation, the 3025EMC combines solid-state hardware reliability with signal protection features, including mechanical bypass relays and a dedicated Emergency input path to immediately protect on-air programming during power or upstream system failures.

Multi-Channel Branding & DVE Capabilities

Engineered with a powerful internal media processing engine, the 3025EMC provides 4 standard internal key layers for high-resolution static or animated logos, lower-third text, audio chimes, and dynamic text crawls. Storage is expandable via CompactFlash (up to 8GB) or Network Attached Storage (+NAS) for automated file ingest. The system can be upgraded with optional 2-channel or 4-channel 2-D DVE engines (+DVE-2D / +DVE-2D-2) to enable picture-in-picture, squeeze-back graphics, and dynamic visual transitions independent of logo and key layers.

Advanced Audio Routing & System Control

The 3025EMC offers complete audio flexibility, supporting 16 embedded audio channels per video stream alongside discrete MADI I/O. Onboard DSP allows operators to perform mono-mixing, phase adjustment, channel shuffling, and dual stereo voice-over ducking with full preview pre-hear capabilities. System control is handled via dedicated RS-232/422 serial automation connections, dual Gigabit Ethernet network ports, or Evertz dynamic LCD pushbutton control panels.

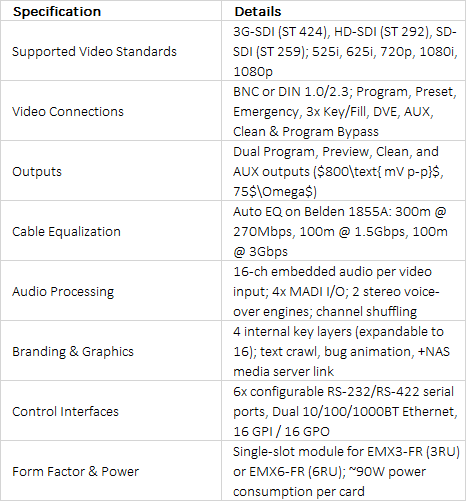

Technical Specifications +

technical specifications
