Evertz 3025SW-3G Mini Master Control Switcher with Advanced Branding & Internal Router

Evertz Signal Processing

Professional broadcast product designed for reliable production, streaming, and modern media workflows.

Genuine
Product

Official
Warranty

Technical
Support

Fast
Delivery

Key Features

Integrated 14-Input Router: Provides internal 14-source routing without requiring an external matrix switcher.
Multi-Format SDI Processing: Supports 3G-SDI (1080p/50/60), HD-SDI, and SD-SDI across Program, Preview, and Clean feed paths.
Keyers & Branding Layers: Includes two external keyer inputs and four internal logo layers for bugs, lower thirds, time/date/temperature displays, and dynamic text crawls with +TXT.
Optional 2D DVE: Provides 2-channel real-time DVE (+DVE-2D) for picture-in-picture, video squeezes, and transitions.
16-Channel Audio Processing: Supports embedded audio re-mapping, mono mixing, and dual stereo voice-overs via AES inputs or WAV files.
Hardware Failover: Physical bypass relays protect Program and Clean outputs during power interruptions or hardware maintenance.
Panel & Automation Control: Supports Evertz 10-character LCD panels and dedicated serial ports for low-latency third-party automation.

Pricing Dhs. 0.00

Request a Quote

Secure checkout. Authorized partner. 100% genuine products.

Details that matter

Features & Specifications

Explore the features, technical details, and everything you need to know about this product.

Need help choosing? Talk to our experts →

Product Overview +

Compact All-In-One Playout & Backup Switching

The Evertz 3025SW-3G is an all-in-one mini master control switcher designed for cost-sensitive playout channels, regional opt-outs, and secondary/backup broadcast control rooms. Built upon Evertz’s field-proven 3025EMC architecture, the 3025SW integrates a 14-input SDI router, full video/audio transition engine, and dynamic multi-layer branding into a single 3-slot module—drastically reducing cost, rack space, and cabling complexity.

Multi-Layer Branding, Graphics & DVE

Featuring two external keyers and four internal branding layers, the card renders static or animated bugs, logo bug sequences, time/date/temperature overlays, dynamic text crawls (+TXT), and audio chimes. Playout cache memory (2GB) and flash memory (2GB) store hundreds of graphics assets, with expansion options up to 8GB (+PC8G / +CF8G). The optional 2-channel 2D DVE module allows picture-in-picture squeeze-backs independent of keyer channels.

Robust Audio DSP & Control Ecosystem

Each video input supports 16 channels of embedded SDI audio with full re-mapping, shuffling, and mono-mixing capabilities. Dual stereo voice-over channels accept AES external audio or trigger .wav audio files. The 3025SW works seamlessly within the Evertz ecosystem, connecting to EMX3-FR or EMX6-FR frames, MVP® multi-viewers, and standard EMC hardware control panels.

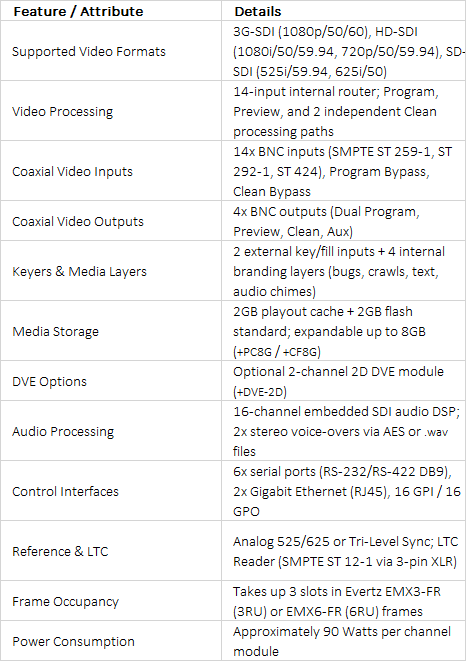

Technical Specifications +

technical specifications
