Evertz 3067VIP10G-J2K-HW JPEG2000 Advanced Multi-Image Display Processor Module

Evertz Signal Processing

Professional broadcast product designed for reliable production, streaming, and modern media workflows.

Genuine
Product

Official
Warranty

Technical
Support

Fast
Delivery

Key Features

32-Input JPEG2000 Processing: Ingests up to 32 JPEG2000 video streams over 10GbE IP networks.
Dual JPEG2000 Mosaic Outputs: Generates up to 2 customizable JPEG2000 multiviewer streams over 10GbE.
Flexible Resolutions: Supports WUXGA (1920 × 1200), 1080p, and 720p output formats.
Quad 10GbE Optical Ports: Provides 4x female LC/UPC optical interfaces for high-speed IP connectivity.
Advanced Monitoring: Includes AVM-Lite fault detection, UMDs, tallies, graticules, and multi-channel audio meters.
Ultra-Low Latency: High-performance image processing engine minimizes delay for live broadcast workflows.
Enterprise Integration: Supports web GUI, VistaLINK SNMP, MAGNUM orchestration, and VUE control surfaces.
Hot-Swappable EMX Module: Dual-slot card compatible with EMX1-FR, EMX3-FR, and EMX6-FR chassis.

Pricing Dhs. 0.00

Request a Quote

Secure checkout. Authorized partner. 100% genuine products.

Details that matter

Features & Specifications

Explore the features, technical details, and everything you need to know about this product.

Need help choosing? Talk to our experts →

Product Overview +

Next-Generation IP Multiview Processing

The Evertz 3067VIP10G-J2K-HW is a high-density, IP-native multi-image display processor engineered for modern JPEG2000 broadcast and IP production facilities. Building on Evertz' industry-leading VIP series multiviewers, the 3067VIP10G-J2K-HW processes up to 32 JPEG2000 video feeds over 10GbE optical links, scaling and positioning them into 2 independent JPEG2000 mosaic outputs for network-wide monitoring.

High-Density Fiber Connectivity & Infrastructure

Equipped with four 10GbE LC optical connectors, the 3067VIP10G-J2K-HW integrates directly into high-bandwidth IP routing backbones, such as the Evertz 3080IPX switch fabric or 3000REM-TX9 transmitters. By eliminating baseband SDI conversion, it drastically lowers cabling complexity and power requirements in OB trucks, master control environments, and remote production hubs.

Enterprise Control & Complete Signal Audit

Featuring Evertz AVM-Lite technology, the module performs automated real-time fault detection for video freeze, video black, audio loss, and audio over-levels. Layout creation and dynamic monitoring setups are easily configured using browser-based tools, VistaLINK® SNMP management, and Evertz MAGNUM control software, enabling full-screen pop-ups and live tally routing.

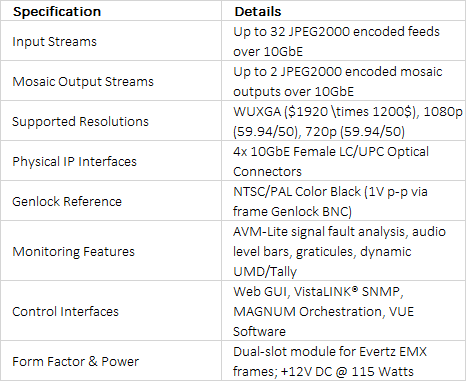

Technical Specifications +

technical specifications
