Evertz 3400FR 1RU Passive Optical Frame & Splitter/Combiner Modules

Evertz Video Router

Professional broadcast product designed for reliable production, streaming, and modern media workflows.

Genuine
Product

Official
Warranty

Technical
Support

Fast
Delivery

Key Features

High-Density Passive Frame: 1RU chassis supporting up to 10 hot-swappable splitter/combiner modules.
Passive Architecture: Requires no power and supports any digital optical bit rate.
Wideband Operation: Supports C-Band and CWDM wavelengths from 1270–1610nm.
Flexible Splitter Options: Supports Quad 1x2, Dual 1x4, and Single 1x8 configurations.
Splitter Types: Available in equal-distribution and tap/monitoring splitter configurations.
Hot-Swappable Modules: Enables front-access servicing without disrupting adjacent fiber paths.
Single-Mode Fiber: Optimized for 9µm SMF long-distance and high-data-rate applications.
Flexible Connectors: Available with LC/PC or low-reflection LC/APC optical connectors.

Pricing Dhs. 0.00

Request a Quote

Secure checkout. Authorized partner. 100% genuine products.

Details that matter

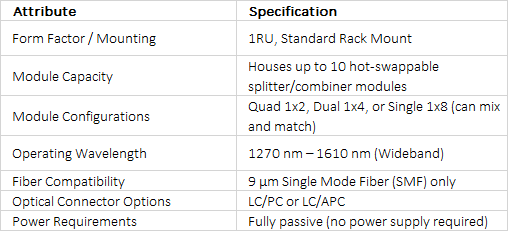

Features & Specifications

Explore the features, technical details, and everything you need to know about this product.

Need help choosing? Talk to our experts →

Product Overview +

High-Density Modular Optical Signal Distribution

The Evertz 3400FR is a compact 1RU passive mounting frame designed for high-density optical signal splitting, combining, and link tapping in modern broadcast and telecommunication infrastructures. Because the frame and installed modules operate entirely without active electronics or power supplies, the system ensures maximum signal reliability for mission-critical CWDM, DWDM, and baseband video fiber links.

Flexible Splitter & Monitoring Configurations

The 3400FR frame accepts up to 10 passive optical modules, which can be mixed and matched across several splitting and monitoring profiles:

Equal Distribution Modules:3400DS2-4: Quad 1x2 passive optical splitter/combiner (< 4.0 dB insertion loss).3400DS4-2: Dual 1x4 passive optical splitter/combiner (< 8.0 dB insertion loss).3400DS8: Single 1x8 passive optical splitter/combiner (< 11.0 dB insertion loss).
Signal Monitoring / Tap Modules:3400MS2-4: Asymmetric tap splitter (95% pass-through port / 5% monitor port).3400MS4-2: Asymmetric tap splitter (30% pass-through port / 10% monitor port).
