Evertz 3405FR-BNC & 3405FR-BNC-48V High-Density 1RU Fiber Optic SFP Frame

Evertz Video Router

Professional broadcast product designed for reliable production, streaming, and modern media workflows.

Genuine
Product

Official
Warranty

Technical
Support

Fast
Delivery

Key Features

High-Density Optical Platform: 1RU chassis supporting up to 16 Evertz 3405 SFP modules for 32 optical/electrical conversions.
Flexible SFP Options: Supports optical transmitters, receivers, regenerators, and electrical distribution amplifiers.
Multi-Rate Transport: Supports 3G-SDI, HD-SDI, SD-SDI, DVB-ASI, and non-reclocked signals up to 3Gbps, including MADI.
Service-Friendly Design: Chassis and rear BNC cabling remain installed during servicing.
Fully Hot-Swappable: Supports replacement of SFPs, frame controllers, power supplies, and fan assemblies without downtime.
Integrated CWDM: Optional module multiplexes up to 32 signals onto two fiber strands without additional rack space.
Remote Monitoring: Supports single or dual redundant frame controllers with SNMP and VistaLINK PRO.
Flexible Powering: Supports dual 12V DC XLR inputs or direct 48V DC auto-ranging terminal-block power.

Pricing Dhs. 0.00

Request a Quote

Secure checkout. Authorized partner. 100% genuine products.

Details that matter

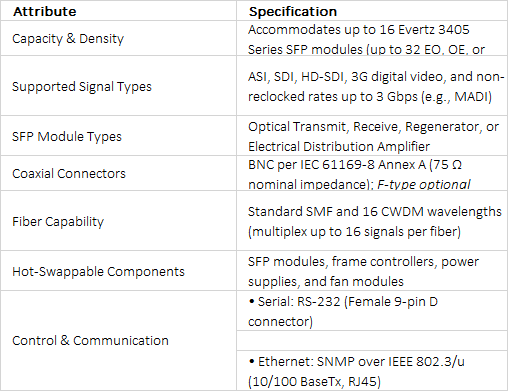

Features & Specifications

Explore the features, technical details, and everything you need to know about this product.

Need help choosing? Talk to our experts →

Product Overview +

Carrier-Grade High-Density Optical Transport

The Evertz 3405FR-BNC series provides a compact, carrier-grade solution for bulk optical-to-electrical and electrical-to-optical conversion. Occupying just 1RU of rack space, the 3405FR-BNC accommodates up to 16 hot-swappable Evertz 3405-series SFP modules, allowing broadcast facilities to perform up to 32 discrete conversions in a single frame. Designed with zero active electronics in the chassis itself, the platform ensures maximum system uptime and effortless maintenance.

Modular Power & Frame Variations

3405FR-BNC (12V DC Version): Powered via dual external 12V DC inputs with 4-pin XLR connectors. Compatible with individual 3405PSX AC power bricks or the 3405PS-6 1RU power tray, which can power up to six 3405FR frames with redundancy (max 40W frame consumption).
3405FR-BNC-48V (48V DC Version): Designed for telecom and centralized DC infrastructure, featuring dual auto-ranging 36–72V DC inputs on 3-pin screw terminal blocks (max 50W frame consumption).
