Evertz 3405FR-DIN & 3405FR-DIN-48V High-Density 1RU Fiber Optic SFP Frame with DIN 1.0/2.3 Connectors

Evertz Video Router

Professional broadcast product designed for reliable production, streaming, and modern media workflows.

Genuine
Product

Official
Warranty

Technical
Support

Fast
Delivery

Key Features

High-Density Optical Platform: 1RU chassis supporting up to 16 Evertz 3405 SFP modules for 32 conversions.
Compact Connectivity: Uses high-density DIN 1.0/2.3 connectors for reliable 75Ω coaxial connections.
Multi-Rate Video: Supports 3G-SDI, HD-SDI, SD-SDI, DVB-ASI, and non-reclocked signals up to 3Gbps, including MADI.
Service-Friendly Design: Chassis and rear DIN cabling remain connected during servicing.
Fully Hot-Swappable: Supports replacement of SFPs, controllers, power supplies, and fan assemblies without downtime.
Automatic Cable Equalization: Supports up to 80m at 3G-SDI, 100m at HD-SDI, and 250m at SD-SDI using Belden 1694A.
Remote Management: Supports single or dual redundant frame controllers with SNMP and VistaLINK PRO monitoring.
Flexible Power Options: Supports dual 12V DC XLR inputs or direct 48V DC auto-ranging terminal-block power.

Pricing Dhs. 0.00

Request a Quote

Secure checkout. Authorized partner. 100% genuine products.

Details that matter

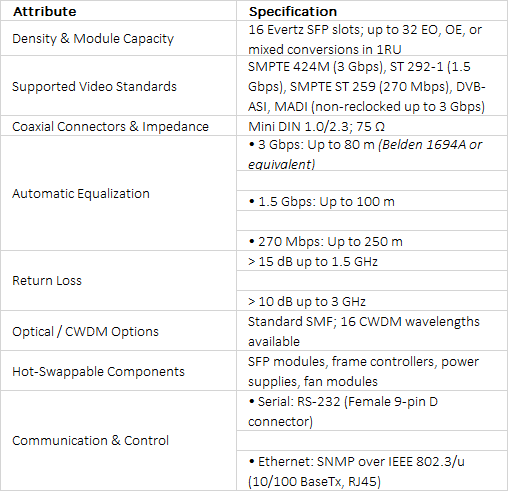

Features & Specifications

Explore the features, technical details, and everything you need to know about this product.

Need help choosing? Talk to our experts →

Product Overview +

High-Density Modular Optical Transport

The Evertz 3405FR-DIN series delivers high-capacity, space-saving optical-to-electrical and electrical-to-optical conversion for broadcast, telecom, and inter-facility environments. By packing up to 16 hot-swappable Evertz 3405-series SFP modules into a 1RU enclosure, the platform enables up to 32 discrete conversions while utilizing high-density Mini DIN 1.0/2.3 coaxial connectors to conserve space in tight rack layouts.

Built for Zero-Downtime Reliability

Designed to eliminate single points of failure, the 3405FR-DIN features a patent-pending frame design with zero active internal components, ensuring that the chassis and connected coaxial wiring remain permanently racked during servicing. All active elements—including fans, power supplies, frame controllers, and SFP optics—are hot-swappable from the front or rear.

Powering Options

3405FR-DIN (12V DC Model): Operates on dual 12V DC power inputs via 4-pin XLR connectors, powered by external 3405PSX AC power bricks or the 1RU 3405PS-6 multi-frame power supply tray (40W max consumption).
3405FR-DIN-48V (48V DC Model): Tailored for central office and telecom power setups with dual auto-ranging 36–72V DC inputs on 3-pin screw terminal blocks (50W typical consumption).
