Evertz 3405FR-XLINK 1RU High-Density XLINK Fiber Optic SFP Frame

Evertz Video Router

Professional broadcast product designed for reliable production, streaming, and modern media workflows.

Genuine
Product

Official
Warranty

Technical
Support

Fast
Delivery

Key Features

32-Channel X-LINK Extension: Extends multi-coaxial X-LINK connections over fiber in a 1RU chassis.
High-Density SFP Capacity: Supports up to 16 dual optical TX/RX 3405-series SFP modules for 32 EO/OE conversions.
X-LINK Connectivity: Provides dedicated high-density connectors for Evertz multi-channel routing systems.
Multi-Rate Video: Supports 3G-SDI, HD-SDI, SD-SDI, and DVB-ASI standards.
Flexible SFP Configuration: Allows dual-transmit or dual-receive modules in any slot combination.
Service-Friendly Design: Patent-pending chassis keeps X-LINK cabling connected during servicing.
Fully Hot-Swappable: Supports SFPs, fans, power supplies, and single/dual frame controllers.
Remote Monitoring & CWDM: Supports SNMP via 10/100Base-Tx and RS-232, with optional CWDM MUX for up to 32 signals over two fibers.

Pricing Dhs. 0.00

Request a Quote

Secure checkout. Authorized partner. 100% genuine products.

Details that matter

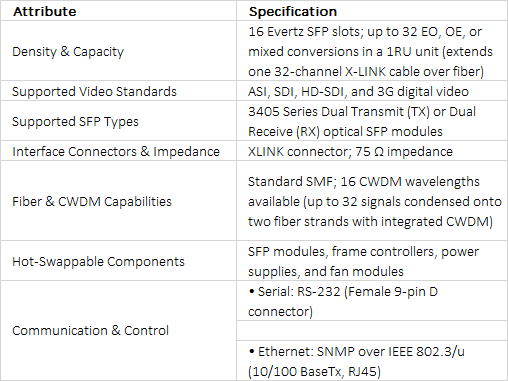

Features & Specifications

Explore the features, technical details, and everything you need to know about this product.

Need help choosing? Talk to our experts →

Product Overview +

High-Density X-LINK Fiber Extension

The Evertz 3405FR-XLINK is a specialized, high-density optical conversion platform designed to extend high-capacity X-LINK multi-coaxial cabling runs over long distances via fiber. Occupying just 1RU of rack space, the 3405FR-XLINK accommodates up to 16 Evertz 3405-series dual SFP modules, enabling up to 32 optical-to-electrical or electrical-to-optical signal conversions. This platform overcomes the strict distance and weight limitations of copper X-LINK interconnects in large broadcast facilities, live production trucks, and venue trunks.

Carrier-Grade Zero-Downtime Design

Engineered for continuous broadcast operations, the frame contains zero active electronic components. Active elements—such as SFP optics, primary/secondary power supplies, cooling fans, and frame controllers—are completely hot-swappable from the front or rear. This ensures that the frame chassis and connected X-LINK multi-coax cables never need to be de-cabled or removed from the equipment rack during maintenance.

Powering & Remote Management

Flexible Power Options: Operates on dual 12V DC power inputs using 4-pin XLR connectors, powered by individual 3405PSX external AC power bricks or the 1RU 3405PS-6 multi-frame power supply tray (max 40W frame consumption).
Network Control: Optional single or dual redundant frame controllers enable comprehensive remote monitoring of optical power levels, signal presence, and rate status over SNMP or Evertz VistaLINK PRO.
