Evertz 3405FRM-BNC & 3405FRM-DIN Miniature "Throwdown" Fiber Optic SFP Frames

Evertz Signal Processing

Professional broadcast product designed for reliable production, streaming, and modern media workflows.

Genuine
Product

Official
Warranty

Technical
Support

Fast
Delivery

Key Features

Compact Throwdown Design: Portable enclosure with keyhole slots and zip-tie mounts for temporary or space-constrained installations.
Single SFP Support: Accommodates one 3405-series SFP for optical TX/RX, regeneration, electrical DA, or changeover functions.
Flexible Coax Interfaces: Offers 2x 75Ω BNC or 4x Mini DIN 1.0/2.3 connectors for signal distribution.
Multi-Rate Transport: Supports 3G-SDI, HD-SDI, SD-SDI, DVB-ASI, and non-reclocked signals up to 3Gbps, including MADI.
Low Power Consumption: Requires up to 2W depending on the SFP, with included 12V DC power supply.
Hot-Swappable SFP: Enables quick field servicing, rate changes, and link reconfiguration.

Pricing Dhs. 0.00

Request a Quote

Secure checkout. Authorized partner. 100% genuine products.

Details that matter

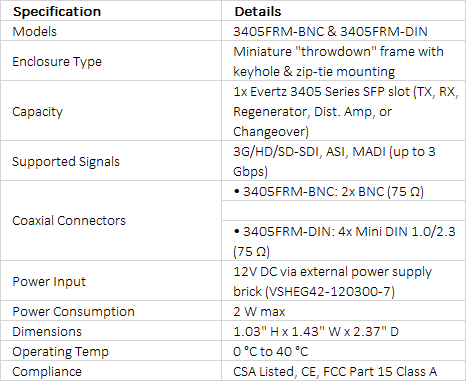

Features & Specifications

Explore the features, technical details, and everything you need to know about this product.

Need help choosing? Talk to our experts →

Product Overview +

Compact "Throwdown" Optical Signal Conversion

The Evertz 3405FRM series (3405FRM-BNC and 3405FRM-DIN) offers a lightweight, miniature solution for single-channel video-over-fiber applications. Engineered for fast deployment in field production, flypacks, OB vans, or tight equipment racks, these throwdown enclosures eliminate coaxial length restrictions by converting SDI and broadcast signals directly to fiber at the signal source.

Flexible Connectivity & Simple Powering

3405FRM-BNC: Features 2x 75Ω BNC ports (per IEC 61169-8 Annex A) for standard coaxial setups.
3405FRM-DIN: Features 4x Mini DIN 1.0/2.3 connectors, taking advantage of quad-electrical SFP outputs to provide built-in signal distribution from a tiny footprint.
Power Supply: Powered by a 12V DC external adapter (VSHEG42-120300-7) with auto-ranging 100–240V AC input, standard coaxial DC connector, and LED power status indicator.
