Evertz 3405FRS-BNC Standalone Fiber Optic SFP Frame with BNC Connectors (4 SFP / Up to 8 Conversions)

Evertz Signal Processing

Professional broadcast product designed for reliable production, streaming, and modern media workflows.

Genuine
Product

Official
Warranty

Technical
Support

Fast
Delivery

Key Features

High-Density Throwdown Frame: Standalone chassis with mounting flanges for field, OB, flypack, and space-constrained installations.
4-SFP Capacity: Supports up to four 3405-series SFP modules for up to 8 optical/electrical conversions.
75Ω BNC Connectivity: Provides standard BNC coaxial ports compliant with IEC 61169-8 Annex A.
Multi-Rate Transport: Supports 3G-SDI, HD-SDI, SD-SDI, DVB-ASI, and non-reclocked signals up to 3Gbps, including MADI.
Flexible SFP Options: Supports transmitters, receivers, regenerators, electrical distribution amplifiers, and changeover switches.
Redundant Power: Dual 12V DC inputs support redundant external power supplies; includes one VSHEG42-120300-7 adapter.
Remote Management: Integrated controller provides SNMP monitoring via 10/100Base-T Ethernet and RS-232 serial control.
Hot-Swappable SFPs: Enables on-the-fly channel expansion, servicing, and rate reconfiguration.

Pricing Dhs. 0.00

Request a Quote

Secure checkout. Authorized partner. 100% genuine products.

Details that matter

Features & Specifications

Explore the features, technical details, and everything you need to know about this product.

Need help choosing? Talk to our experts →

Product Overview +

Compact Standalone Bulk Optical Transport

The Evertz 3405FRS-BNC is a high-density, flange-mounted standalone optical conversion platform designed for low-channel-count broadcast setups. Capable of housing up to 4 Evertz 3405-series SFP modules, the 3405FRS-BNC delivers up to 8 discrete optical-to-electrical or electrical-to-optical signal conversions from an ultra-compact footprint measuring just over 7 inches wide.

Enterprise Features in a Portable Enclosure

Unlike standard throwdown converters, the 3405FRS-BNC delivers enterprise and broadcast-grade management features. An integrated frame controller provides real-time signal presence, data rate monitoring, and parameter status via SNMP over a dedicated RJ-45 Ethernet port. For mission-critical reliability, the unit supports redundant 12V DC power inputs fed by auto-ranging 100–240V AC external power adapters, ensuring continuous video transport across long-distance fiber trunks.

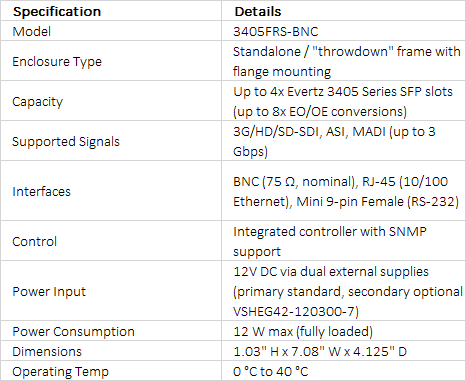

Technical Specifications +

technical specifications
