Evertz 3405PS-6 Six-Output Primary & Redundant Power Supply Tray for 3405FR Series Frames

Evertz Video Router

Professional broadcast product designed for reliable production, streaming, and modern media workflows.

Genuine
Product

Official
Warranty

Technical
Support

Fast
Delivery

Key Features

High-Density Power Tray: 1RU supply tray providing dual 12V DC outputs for up to six 3405FR series frames.
Redundant Powering: Provides 6 primary and 6 secondary 12V DC outputs with short-circuit and current-limiting protection.
Universal AC Input: Supports 100–240V AC, 50/60Hz, with up to 250W per input.
Hot-Swappable Design: Features front-extractable power modules and cooling fans for continuous operation.
Status Monitoring: Front-panel LEDs display the operating status of each power module.
12V DC Compatibility: Uses 4-pin XLR female outputs for 3405FR-BNC, 3405FR-DIN, and 3405FR-XLINK frames.
Wide Temperature Range: Supports operation from -20°C to +70°C.

Pricing Dhs. 0.00

Request a Quote

Secure checkout. Authorized partner. 100% genuine products.

Details that matter

Features & Specifications

Explore the features, technical details, and everything you need to know about this product.

Need help choosing? Talk to our experts →

Product Overview +

Centralized Redundant Powering for 3405FR Frames

The Evertz 3405PS-6 is a compact 1RU power supply tray designed to centralize and streamline power distribution for dense deployments of Evertz 3405FR series 1RU fiber optic SFP frames. Instead of using individual external AC power bricks for each chassis, the 3405PS-6 powers up to six 3405FR frames with both primary and secondary redundant 12V DC power from a single 1RU rack unit.

High-Availability Broadcast & Telecom Reliability

Built for mission-critical installations in broadcast control rooms, OB vans, and central apparatus rooms, the 3405PS-6 eliminates single points of failure. The dual AC inputs accept independent mains power feeds, while all internal power modules and cooling fans are hot-swappable from the front panel without disturbing active optical connections or taking attached 3405FR frames offline.

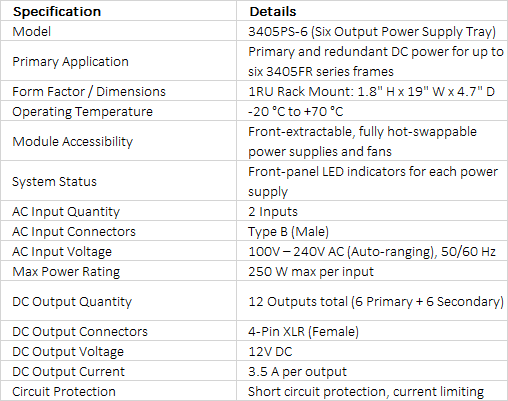

Technical Specifications +

technical specifications
