Evertz 3406 Optical SFP Series | 12G/3G/HD/SD/ASI Transmitters & Receivers | 3406FR Frame

Evertz Signal Processing

Professional broadcast product designed for reliable production, streaming, and modern media workflows.

Genuine
Product

Official
Warranty

Technical
Support

Fast
Delivery

Key Features

12G-SDI Support: Supports reclocked 12G-SDI, 3G-SDI, HD-SDI, SD-SDI, and DVB-ASI signals.
Flexible Channel Formats: Available as dual-channel EO transmitters, dual-channel OE receivers, and single-channel 1x4 distribution receivers.
Flexible Wavelengths: Supports standard 1310nm (-2dBm) and 16 CWDM wavelengths from 1270–1610nm (-1dBm) per ITU-T G.694.2.
12G Reclocking: Maintains signal integrity with alignment jitter below 0.3 UI at 11.88Gbps.
Coaxial Equalization: Compensates for cable loss up to 20m at 12Gbps and 80m at 3Gbps using Belden 1694A.
High-Density Outputs: Provides up to 4 processed electrical outputs per channel through HD-BNC interfaces.
Laser Safety & Compliance: Class 1 laser product compliant with IEC 60825-1 and FCC Part 15 Class A.

Pricing Dhs. 0.00

Request a Quote

Secure checkout. Authorized partner. 100% genuine products.

Details that matter

Features & Specifications

Explore the features, technical details, and everything you need to know about this product.

Need help choosing? Talk to our experts →

Product Overview +

Ultra High-Definition 12G-SDI Fiber Conversion

The Evertz 3406 Optical SFP Series delivers broadcast-grade 12G-SDI optical-to-electrical and electrical-to-optical conversion in a compact Small Form-factor Pluggable (SFP) format. Specifically designed to support 4K/UHD single-link workflows, the 3406 series transparently transports uncompressed 12Gb/s video streams along with 3G/HD/SD-SDI and DVB-ASI over single-mode fiber infrastructure, eliminating the bandwidth bottlenecks of legacy coaxial cabling.

Specialized Transmitter and Receiver Models

Engineered for use within Evertz 3406FR-HDBNC mounting frames, the 3406 optical series provides versatile module configurations to match complex UHD routing requirements:

12G Optical Transmitters (EO): Dual-channel models available with standard 1310nm lasers (3406T13-2-12G) or CWDM wavelengths (3406Txx/yy-2-12G) for high-density wavelength multiplexing.
12G Optical Receivers (OE): Dual-channel models (3406R-2-12G) providing 2 electrical outputs per optical channel, or single-channel distribution models (3406R-DA4R-12G) converting 1 optical input into 4 reclocked HD-BNC electrical outputs.

Operational Efficiency and Signal Integrity

Featuring high-density HD-BNC electrical interfaces and LC/UPC optical connectors, the 3406 series allows broadcast facilities, mobile production units, and live event venues to maximize rack density. Integrated adaptive equalization and multi-rate reclocking ensure continuous signal integrity with fast rise/fall times (< 50 ps at 12G) and low alignment jitter across long-distance facility connections and field deployments.

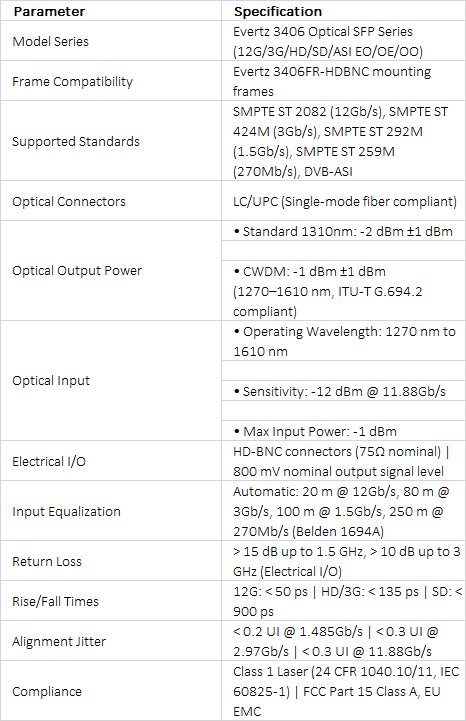

Technical Specifications +

technical specifications
