Evertz 3406FR-HDBNC 1RU High-Density 12G/3G/HD/SD Fiber Optic SFP Frame with HD-BNC Connectors

Evertz Video Router

Professional broadcast product designed for reliable production, streaming, and modern media workflows.

Genuine
Product

Official
Warranty

Technical
Support

Fast
Delivery

Key Features

High-Density Optical Platform: 1RU chassis supporting up to 16 Evertz 3406/3405 SFP modules for 32 video-over-fiber conversions.
Multi-Rate Video: Supports 12G-SDI, 3G-SDI, HD-SDI, SD-SDI, DVB-ASI, and non-reclocked signals up to 12Gbps, including MADI.
Additional SFP Slots: Provides 4 MSA-compliant slots for fiber-to-fiber, fiber-to-coax, and fiber-to-RJ45 Ethernet conversion.
HD-BNC Connectivity: Features high-density positive-locking 75Ω HD-BNC connectors.
Service-Friendly Design: Patented chassis keeps HD-BNC cabling connected during servicing.
Fully Hot-Swappable: Supports SFP optics, redundant AC PSUs, cooling fans, and frame controllers.
CWDM Support: Supports up to 18 CWDM wavelengths with optional MUX for up to 36 signals over two fibers.
Remote Management: Provides browser-based control and SNMP via Gigabit Ethernet and Micro USB-B serial interface.

Pricing Dhs. 0.00

Request a Quote

Secure checkout. Authorized partner. 100% genuine products.

Details that matter

Features & Specifications

Explore the features, technical details, and everything you need to know about this product.

Need help choosing? Talk to our experts →

Product Overview +

Next-Generation 12G-SDI Bulk Optical Transport

The Evertz 3406FR-HDBNC is an ultra-high-density 1RU optical conversion platform designed for 12G-SDI, 3G-SDI, and UHD broadcast and telecommunications infrastructure. Holding up to 16 Evertz 3406/3405-series SFP transceivers, the 3406FR-HDBNC delivers up to 32 discrete optical-to-electrical or electrical-to-optical conversions. In addition, the frame incorporates 4 auxiliary MSA-compliant SFP slots, enabling versatile auxiliary signal extension like Gigabit Ethernet or additional video paths without requiring dedicated rack units.

Carrier-Grade Reliability & Maintenance

Engineered for zero-downtime environments, the 3406FR-HDBNC features Evertz's patented chassis architecture with no active components in the frame itself. Rear HD-BNC cabling remains permanently installed during service, as all active modules—including dual auto-ranging AC power supplies, fan modules, optics, and single or dual redundant frame controllers—are completely hot-swappable. Integrated web browser management and SNMP protocol support ensure comprehensive real-time monitoring of signal presence, data rates, and optical launch power.

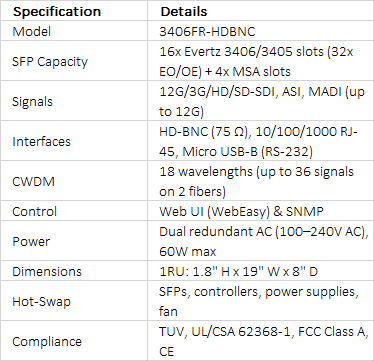

Technical Specifications +

technical specifications
