Evertz 3505FR-32-BNC4 2RU High-Density Optical SFP BNC Frame (32 SFP / 64 Conversion Channels)

Evertz Video Router

Professional broadcast product designed for reliable production, streaming, and modern media workflows.

Genuine
Product

Official
Warranty

Technical
Support

Fast
Delivery

Key Features

Ultra-High Density: 2RU chassis supporting up to 32 Evertz 3405 SFP modules for 64 optical/electrical conversions.
Quad BNC Connectivity: Provides 4x 75Ω BNC connectors per SFP slot for signal splitting and electrical distribution.
Flexible SFP Options: Supports transmitters, receivers, regenerators, and distribution amplifiers in any slot.
Multi-Rate Transport: Supports 3G-SDI, HD-SDI, SD-SDI, DVB-ASI, and non-reclocked signals up to 3Gbps, including MADI.
Service-Friendly Design: Zero active frame components keep rack mounting and coaxial cabling connected during servicing.
Fully Hot-Swappable: Supports SFPs, redundant AC PSUs, cooling fans, and frame controllers.
Quiet Cooling: Temperature-controlled fan system minimizes acoustic noise in control rooms and OB vehicles.
Monitoring & CWDM: Provides 4-digit LED diagnostics, SNMP/RS-232 control, and 16-wavelength CWDM support.

Pricing Dhs. 0.00

Request a Quote

Secure checkout. Authorized partner. 100% genuine products.

Details that matter

Features & Specifications

Explore the features, technical details, and everything you need to know about this product.

Need help choosing? Talk to our experts →

Product Overview +

Ultra-High-Density 2RU Bulk Optical Conversion

The Evertz 3505FR-32-BNC4 sets the industry benchmark for high-capacity bulk optical signal conversion, packing up to 32 hot-swappable Evertz 3405-series SFP modules into a compact 2RU chassis. Capable of handling up to 64 discrete optical-to-electrical or electrical-to-optical conversions, this platform is specifically designed for space-constrained broadcast apparatus rooms, mobile production units, and venue distribution hubs.

Integrated Quad BNC Signal Distribution

Each of the 32 SFP slots on the 3505FR-32-BNC4 features quad 75Ω BNC coaxial connectors (IEC 61169-8 Annex A). This quad-connector layout allows dual-channel SFPs to provide built-in electrical distribution and auxiliary signal outputs directly from the frame without needing external DA modules or patch panels.

Zero-Downtime Carrier-Grade Architecture

Built for continuous 24/7 broadcast operations, the frame employs a patent-pending architecture with no active electronics embedded in the chassis itself. Active elements—such as SFP transceivers, dual redundant auto-ranging AC power supplies, variable-speed fan assemblies, and single or dual frame controllers—are completely hot-swappable from the front or rear.

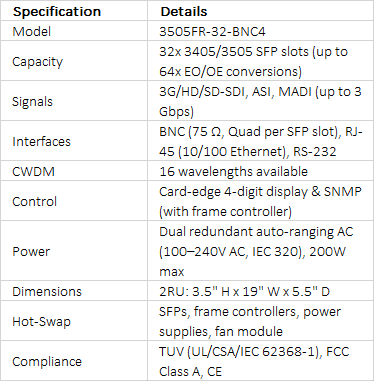

Technical Specifications +

technical specifications
