Evertz 3505FR-64-BNC2 2RU Ultra-High-Density Optical SFP BNC Frame (64 SFP / 128 Conversion Channels)

Evertz Signal Processing

Professional broadcast product designed for reliable production, streaming, and modern media workflows.

Genuine
Product

Official
Warranty

Technical
Support

Fast
Delivery

Key Features

Ultra-High Density: Supports up to 64 Evertz 3405 SFP modules in 2RU for 128 optical/electrical conversions.
Dual BNC Connectivity: Provides 2x 75Ω BNC connectors per SFP slot per IEC 61169-8 Annex A.
Flexible SFP Configuration: Supports transmitters, receivers, regenerators, and electrical distribution amplifiers in any slot.
Multi-Rate Transport: Supports 3G-SDI, HD-SDI, SD-SDI, DVB-ASI, and non-reclocked signals up to 3Gbps, including MADI.
Service-Friendly Design: Zero active frame components keep the chassis and rear BNC cabling installed during servicing.
Fully Hot-Swappable: Supports SFPs, redundant AC PSUs, cooling fans, and frame controllers.
Quiet Cooling: Temperature-controlled fans minimize acoustic noise in production environments.
Monitoring & CWDM: Provides 4-digit LED diagnostics, SNMP/10/100Base-T Ethernet, RS-232, and 16-wavelength CWDM support.

Pricing Dhs. 0.00

Request a Quote

Secure checkout. Authorized partner. 100% genuine products.

Details that matter

Features & Specifications

Explore the features, technical details, and everything you need to know about this product.

Need help choosing? Talk to our experts →

Product Overview +

Maximum Density Optical Conversion in 2RU

The Evertz 3505FR-64-BNC2 delivers extreme signal density for bulk optical transport, accommodating up to 64 hot-swappable Evertz 3405-series SFP modules in a compact 2RU footprint. Capable of supporting up to 128 discrete optical-to-electrical or electrical-to-optical conversions, it provides an ideal solution for space-constrained broadcast master control, mobile production trucks, and venue infrastructure.

Dual BNC Architecture & Zero-Downtime Design

Equipped with dual 75Ω BNC ports per SFP cage, the 3505FR-64-BNC2 offers direct dual-channel coaxial connectivity for high-density setups. Built for continuous 24/7 mission-critical operations, the frame utilizes a patent-pending architecture free of active internal electronics. All active parts—including SFP transceivers, dual redundant AC power supplies, cooling fan units, and single or dual frame controllers—are completely hot-swappable without disturbing active fiber or coaxial connections.

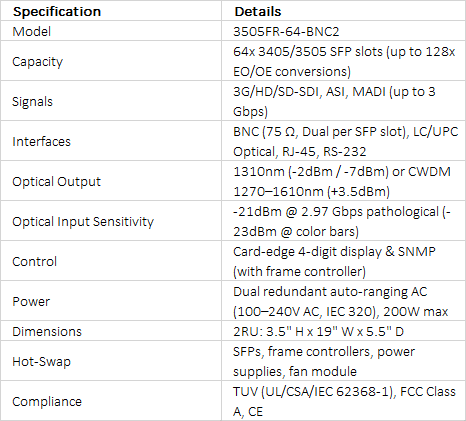

Technical Specifications +

technical specifications
