Evertz 3505FR-DIN 2RU Ultra-High-Density Fiber Optic SFP Frame with DIN 1.0/2.3 Connectors (64 SFP / 128 Conversion Channels)

Evertz Signal Processing

Professional broadcast product designed for reliable production, streaming, and modern media workflows.

Genuine
Product

Official
Warranty

Technical
Support

Fast
Delivery

Key Features

Ultra-High Density: Supports up to 64 Evertz 3405/3505 SFP modules in 2RU for 128 optical/electrical conversions.
High-Density DIN Connectivity: Provides quad Mini DIN 1.0/2.3 75Ω connectors per SFP slot for signal distribution.
Flexible SFP Configuration: Supports transmitters, receivers, regenerators, and electrical distribution amplifiers in any slot.
Multi-Rate Transport: Supports 3G-SDI, HD-SDI, SD-SDI, DVB-ASI, and non-reclocked signals up to 3Gbps, including MADI.
Service-Friendly Design: Zero active frame components keep the chassis and rear DIN cabling racked during servicing.
Fully Hot-Swappable: Supports SFP transceivers, redundant AC PSUs, cooling fans, and single/dual frame controllers.
Quiet Cooling: Temperature-controlled fans minimize acoustic noise in live production environments.
Monitoring & CWDM: Provides 4-digit LED diagnostics, SNMP/10/100Base-T Ethernet, RS-232, and 16-wavelength CWDM support.

Pricing Dhs. 0.00

Request a Quote

Secure checkout. Authorized partner. 100% genuine products.

Details that matter

Features & Specifications

Explore the features, technical details, and everything you need to know about this product.

Need help choosing? Talk to our experts →

Product Overview +

Industry-Leading 2RU Bulk Optical Conversion

The Evertz 3505FR-DIN is an ultra-high-density 2RU bulk optical conversion platform engineered for space-constrained broadcast apparatus rooms, mobile production trucks, and venue infrastructure. By accommodating up to 64 hot-swappable Evertz 3405 or 3505 series SFP modules, the 3505FR-DIN enables up to 128 discrete optical-to-electrical or electrical-to-optical conversions in just 2RU of rack space.

High-Density Mini DIN 1.0/2.3 Connectivity

Utilizing compact Mini DIN 1.0/2.3 coaxial connectors, each SFP position features quad electrical connections to support high-density signal distribution directly from the frame without taking up additional rack units.

Carrier-Grade Zero-Downtime Design

Engineered for continuous 24/7 mission-critical operations, the 3505FR-DIN features a patent-pending frame architecture containing no active internal electronics. All active components—including SFP transceivers, primary/secondary auto-ranging AC power supplies, cooling fans, and frame controllers—are hot-swappable from the front or rear, ensuring rear coaxial wiring and the frame chassis never need to be de-cabled or unmounted for maintenance.

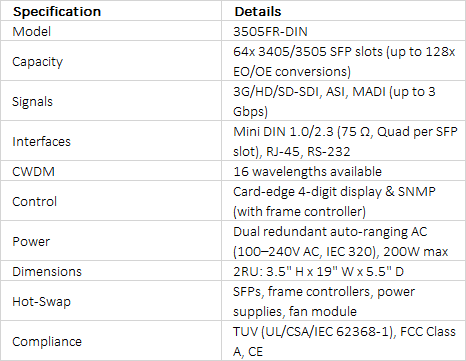

Technical Specifications +

technical specifications
