Evertz 3505FR-XLINK 2RU Ultra-High-Density XLINK Fiber Optic SFP Frame (64 SFP / 128 Conversion Channels)

Evertz Signal Processing

Professional broadcast product designed for reliable production, streaming, and modern media workflows.

Genuine
Product

Official
Warranty

Technical
Support

Fast
Delivery

Key Features

Ultra-High Density: Supports up to 64 Evertz 3405/3505 SFP modules in 2RU for 128 optical/electrical conversions.
X-LINK Extension: Extends up to four 32-channel X-LINK multi-coaxial connections over fiber per frame.
Dedicated X-LINK Connectivity: Provides high-density connectors for direct integration with Evertz multi-channel routing systems.
Multi-Rate Transport: Supports 3G-SDI, HD-SDI, SD-SDI, DVB-ASI, and non-reclocked signals up to 3Gbps, including MADI.
Flexible SFP Configuration: Supports dual-transmit or dual-receive 3405 SFP modules in any slot combination.
Service-Friendly Design: Zero active frame components keep rear X-LINK cabling racked during servicing.
Fully Hot-Swappable: Supports SFP optics, redundant AC PSUs, cooling fans, and single/dual frame controllers.
Quiet Cooling: Temperature-controlled fans minimize acoustic noise during live production.
Monitoring & CWDM: Provides 4-digit LED diagnostics, SNMP/10/100Base-T Ethernet, RS-232, and 16-wavelength CWDM support.

Pricing Dhs. 0.00

Request a Quote

Secure checkout. Authorized partner. 100% genuine products.

Details that matter

Features & Specifications

Explore the features, technical details, and everything you need to know about this product.

Need help choosing? Talk to our experts →

Product Overview +

Ultra-High-Density XLINK Fiber Extension

The Evertz 3505FR-XLINK is an ultra-high-density 2RU bulk optical conversion platform built to extend high-capacity X-LINK multi-coaxial cabling runs over long distances via fiber optics. By accommodating up to 64 hot-swappable Evertz 3405 or 3505-series SFP modules, a single 3505FR-XLINK frame can extend up to four 32-channel X-LINK connections (up to 128 total conversion channels) in just 2RU of rack space.

Carrier-Grade Zero-Downtime Design

Engineered for continuous 24/7 broadcast operations, the frame employs a patent-pending architecture free of active internal electronics. All active parts—including SFP transceivers, dual redundant auto-ranging AC power supplies, variable-speed fan assemblies, and single or dual frame controllers—are completely hot-swappable without disturbing active X-LINK cabling or removing the frame from the rack.

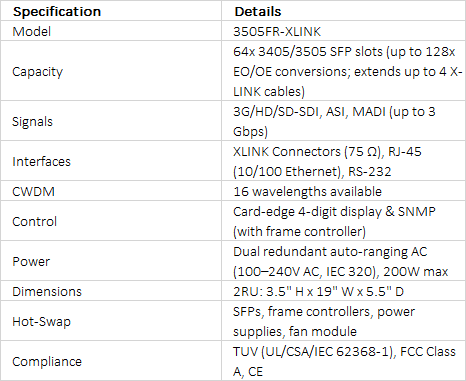

Technical Specifications +

technical specifications
