Evertz 400ADA-AUD | 1x9 Analog Audio Distribution Amplifier

Evertz Signal Processing

Professional broadcast product designed for reliable production, streaming, and modern media workflows.

Genuine
Product

Official
Warranty

Technical
Support

Fast
Delivery

Key Features

1x9 Analog Audio Distribution: Drives up to nine identical balanced or single-ended analog audio outputs from one input source.
Universal Differential Input: Supports automatic single-ended-to-differential conversion with >105dB CMRR at 60Hz.
Flexible Gain Calibration: Provides 0dB/+6dB input gain, 0/3.5/9.5dB output gain, and -5dB to +5dB card-edge fine adjustment.
Broadcast-Grade Audio Quality: Delivers 0.001% THD+N with high signal-to-noise performance across the 20Hz–20kHz audio range.
High-Density Modular Design: Occupies one slot in the Evertz 3RU 400FR frame, supporting up to 16 DA modules per chassis.
On-Card Diagnostics: Provides card-edge LEDs for module status, local fault detection, and power supply health monitoring.

Request a Quote

Secure checkout. Authorized partner. 100% genuine products.

Details that matter

Features & Specifications

Explore the features, technical details, and everything you need to know about this product.

Need help choosing? Talk to our experts →

Product Overview +

High-Performance Analog Audio Distribution

The Evertz 400ADA-AUD is a broadcast-grade 1x9 analog audio distribution amplifier designed for critical audio distribution across broadcast facilities, recording studios, and live production environments. Engineered to split differential balanced or single-ended audio signals without signal degradation, the module delivers clean sound replication across 9 terminal block outputs.

Comprehensive Gain & Signal Optimization

Input & Output Level Adjustment: Jumper-selectable input step gain (0 dB / +6 dB) and output step gain (0 dB / 3.5 dB / 9.5 dB) allow precise matching between professional (+4 dBu) and consumer (-10 dBV) equipment.
Fine Calibration: A card-edge potentiometer provides fine-tuning between -5 dB and +5 dB for accurate level alignment.
Noise Immunity: Exceptional CMRR (> 105 dB @ 60 Hz) and channel isolation (> 100 dB @ 1 kHz) eliminate ground loops, line hum, and crosstalk in complex wiring plants.

Reliable Modular Chassis Integration

Occupying a single slot in the 3RU Evertz 400FR modular frame, up to 16 400ADA-AUD amplifiers can be deployed in a single chassis to deliver 144 distributed audio outputs in 3 rack units. Quick-reference card-edge LEDs give operators real-time visual feedback on module power and operating status.

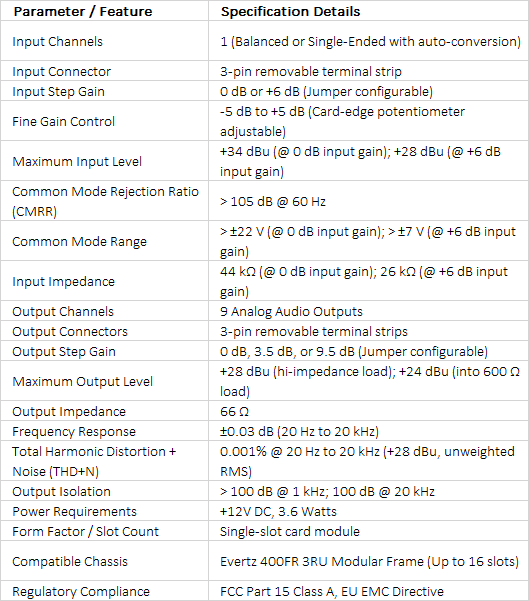

Technical Specifications +

technical specifications
