Evertz 400FR | 3RU Compact High-Density Balanced Audio Frame Chassis

Evertz Signal Processing

Professional broadcast product designed for reliable production, streaming, and modern media workflows.

Genuine
Product

Official
Warranty

Technical
Support

Fast
Delivery

Key Features

High-Density Modular Frame: 3RU 19-inch chassis supporting up to 16 hot-swappable Evertz 400-series audio processing and distribution modules.
Redundant Power Architecture: Dual hot-swappable, auto-ranging 100–240V AC power supplies with separate AC inlets and integrated cooling.
Passive Rear Backplane: Enables module hot-swapping without disconnecting field cabling.
High-Density Audio I/O: Provides 10 high-quality 3-pin removable terminal strips per slot, for 160 total terminal connections supporting balanced analog and digital audio.
Front-Panel Diagnostics: Includes a PSU status monitoring window and local fault LEDs for quick system health checks.
External Alarm Tally: Provides a 4-pin relay tally output connector for external alarm signaling.

Request a Quote

Secure checkout. Authorized partner. 100% genuine products.

Details that matter

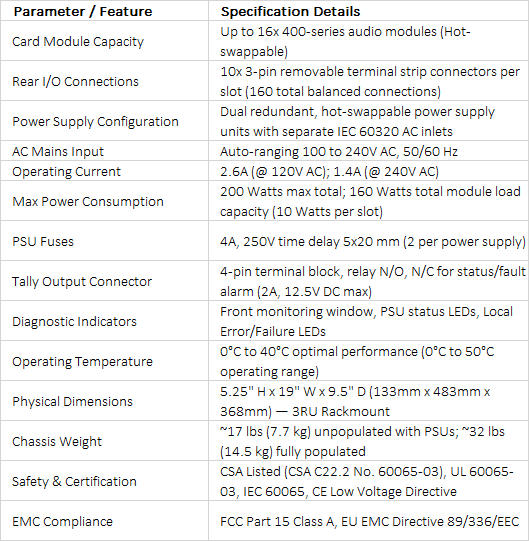

Features & Specifications

Explore the features, technical details, and everything you need to know about this product.

Need help choosing? Talk to our experts →

Product Overview +

High-Density Balanced Audio Frame Architecture

The Evertz 400FR is a 3RU multi-slot frame enclosure engineered for high-density audio distribution, routing, and signal processing in professional broadcast facilities, recording studios, and live production racks. Supporting up to 16 single-slot 400-series audio cards, it provides a unified housing for analog audio (400ADA-AUD) and balanced AES/EBU digital audio distribution modules (400DA-AESB, 400DA2Q-AESB).

Mission-Critical Redundancy & Hot-Swappable Operation

Redundant Power Supplies: Equipped with dual hot-swappable power supply units running on separate AC mains inputs (100–240V AC auto-ranging). The chassis supports up to 160 Watts total module load (10 Watts per slot).
Passive Backplane & Zero-Downtime Maintenance: Field wiring connects directly to the passive rear panel. Processing modules can be hot-swapped from the front without de-cabling or disrupting neighboring signals.
Integrated System Health Monitoring: A front-panel window and diagnostic LEDs provide status reporting for power supplies and card health, supplemented by a 4-pin relay tally output for remote alarm indication.
