Evertz 500ADA | Analog Video Distribution Amplifier (1x9)

Evertz Signal Processing

Professional broadcast product designed for reliable production, streaming, and modern media workflows.

Genuine
Product

Official
Warranty

Technical
Support

Fast
Delivery

Key Features

Broad Analog Compatibility: Supports 75Ω analog video, pulse, and sync signals up to 2V p-p across 30MHz bandwidth.
1x9 Signal Distribution: Provides one balanced input to nine 75Ω BNC outputs.
Selectable Input Configuration: Jumper-selectable 75Ω termination or 35kΩ Hi-Z input impedance with AC or DC coupling.
High Noise Rejection: Delivers >70dB common mode rejection at 1kHz with a >6V p-p common mode range.
Fail-Safe Termination: Maintains consistent input impedance during frame power loss to prevent passive loop impedance mismatch.
VistaLINK® Remote Telemetry: Enables SNMP-based remote monitoring and control when installed in a 500FR frame with a 500FC Frame Controller.

Request a Quote

Secure checkout. Authorized partner. 100% genuine products.

Details that matter

Features & Specifications

Explore the features, technical details, and everything you need to know about this product.

Need help choosing? Talk to our experts →

Product Overview +

High-Performance Analog Distribution for Facility Infrastructure

The Evertz 500ADA is a general-purpose analog distribution amplifier designed to handle a wide range of analog video, reference sync, and timing pulse signals. Featuring one balanced input feeding nine output channels, the 500ADA provides a cost-effective, high-density solution for routing analog signals throughout broadcast facilities, production studios, and master control environments.

Signal Integrity & Flexible Architecture

Engineered for ultimate signal stability, the 500ADA features jumper-selectable 75Ω or high-impedance (35kΩ Hi-Z) input termination, allowing easy looping configurations using an external "T" connector. Jumper-selectable AC or DC coupling provides versatile signal conditioning, while an adjustable gain range (±5 dB) compensates for line attenuation. Crucially, the card retains a stable input impedance even if power to the module is lost, ensuring downstream signals remain unaffected.

High-Density Modular Design & Remote Monitoring

The 500ADA occupies a single slot in the 3RU Evertz 500FR frame, accommodating up to 16 cards per chassis. Local status LEDs on the card edge provide immediate feedback on module status and power supply health. When paired with a 500FC Frame Controller, the module integrates seamlessly into the Evertz VistaLINK® ecosystem for remote SNMP diagnostics and operational monitoring.

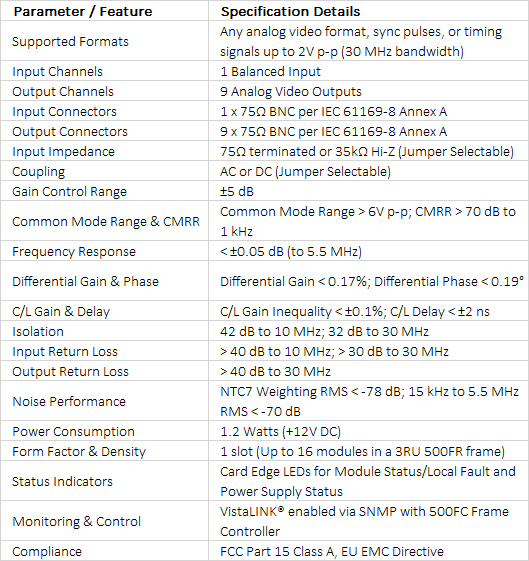

Technical Specifications +

technical specifications
