Evertz 500ADA-AUD | Analog Audio Distribution Amplifier (1x4)

Evertz Signal Processing

Professional broadcast product designed for reliable production, streaming, and modern media workflows.

Genuine
Product

Official
Warranty

Technical
Support

Fast
Delivery

Key Features

High-Performance 1x4 Distribution: Distributes one balanced or single-ended input to four low-impedance outputs.
Flexible Input Conversion: Supports differential and single-ended inputs with automatic single-ended-to-differential conversion.
Adjustable Gain Control: Provides 0/+6dB input step gain, ±5dB fine gain adjustment, and 0/3.5/9.5dB output step gain.
High-Fidelity Audio: Delivers 0.001% THD+N from 20Hz–20kHz, ±0.03dB frequency response, and >100dB output isolation.
High Noise Rejection: Provides >105dB CMRR at 60Hz and up to +34dBu input headroom for demanding studio environments.
High-Density 500FR Integration: Occupies one slot in the Evertz 500FR frame, supporting up to 16 distribution amplifiers in a 3RU chassis.

Request a Quote

Secure checkout. Authorized partner. 100% genuine products.

Details that matter

Features & Specifications

Explore the features, technical details, and everything you need to know about this product.

Need help choosing? Talk to our experts →

Product Overview +

Professional High-Density Analog Audio Distribution

The Evertz 500ADA-AUD is a premium 1x4 analog audio distribution amplifier engineered for broadcast master control, audio production facilities, and live venue infrastructure. Designed to accept both balanced differential and single-ended signals, it converts single-ended inputs to differential outputs automatically while maintaining exceptional audio clarity, high headroom, and minimal distortion across the entire audible frequency spectrum.

Precision Gain Structure & High Headroom

Equipped with a highly customizable gain layout, the 500ADA-AUD provides exact signal level matching across diverse line-level audio equipment:

Input Gain Control: Jumper-selectable input step gain (0 dB or +6 dB) paired with a card-edge fine gain adjustment potentiometer (-5 to +5 dB).
Output Gain Control: Jumper-configurable output step gain options (0, 3.5, or 9.5 dB).
Maximum Headroom: Supports high signal levels up to +34 dBu maximum input level (at 0 dB gain) and up to +28 dBu maximum output level across high-impedance loads (+24 dBu into 600Ω loads).

Robust Architecture & Easy Installation

Utilizing 3-pin removable terminal strip connectors (WECO/Phoenix style) for secure audio wiring, the 500ADA-AUD fits into a single slot of the 3RU Evertz 500FR frame (up to 16 modules per chassis). Onboard card-edge status LEDs provide immediate visual diagnostics for module health, local faults, and power supply rail integrity.

Technical Specifications +

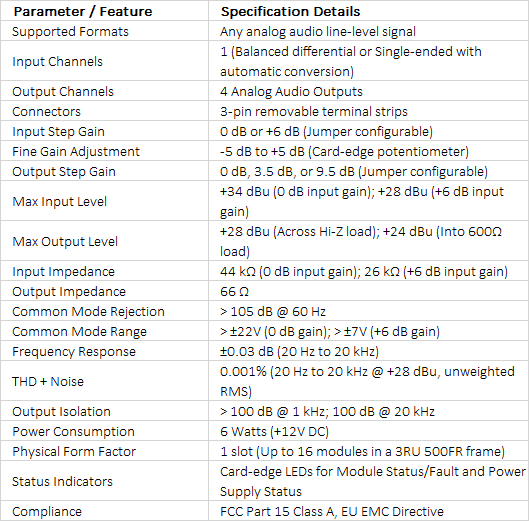

technical specifications
