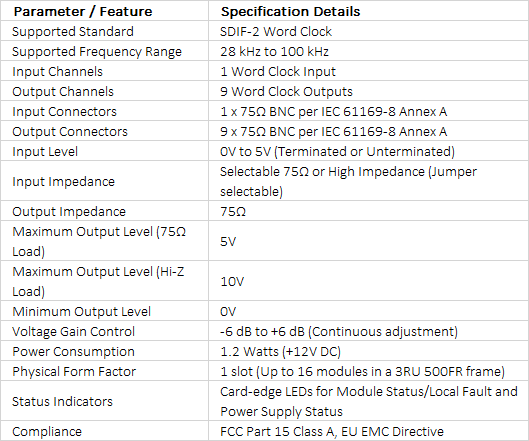

Precision Digital Audio Timing Distribution

The Evertz 500ADA-W is a specialized 1x9 distribution amplifier engineered to distribute SDIF-2 Word Clock sync signals across digital audio broadcast facilities, recording studios, and master control environments. Supporting sampling frequencies from 28 kHz to 100 kHz, it ensures precise clock synchronization across digital audio workstations, converters, and routing switcher infrastructures.

Flexible Signal Conditioning & Driven Output

Designed for robust clock signal management, the 500ADA-W provides:

• Input Impedance Selection: Jumper-configurable 75Ω termination or high-impedance input mode, facilitating easy daisy-chaining and signal looping.
• Gain Adjustment: Continuous onboard voltage gain control (-6 dB to +6 dB) allows fine-tuning of clock signal levels.
• Output Drive: Delivers strong output signals up to 5V p-p across 75Ω loads and up to 10V p-p into high-impedance loads across all 9 output BNC channels.

Modular Frame Integration

The 500ADA-W installs into a single card slot of the 3RU Evertz 500FR frame, providing high-density distribution with up to 16 cards per chassis. Card-edge LED indicators display real-time status for module health, local faults, and internal power supply rails.
