Evertz 500DA-3G | 3G/HD/SD-SDI Reclocking Distribution Amplifier (1x8)

Evertz Signal Processing

Professional broadcast product designed for reliable production, streaming, and modern media workflows.

Genuine
Product

Official
Warranty

Technical
Support

Fast
Delivery

Key Features

1x8 Multi-Rate Distribution: Accepts one serial digital input and provides eight isolated, reclocked outputs without cross-channel loading.
Automatic Reclocking: Detects and reclocks 3G-SDI (SMPTE ST 424), HD-SDI (ST 292-1), and SD-SDI (ST 259-1) rates.
Jumper-Selectable Bypass: Supports non-reclocked pass-through for DVB-ASI, SMPTE ST 310-1 (19.4Mbps), and SD data rates of 143/360/540Mbps.
Extended Cable Equalization: Supports coax runs up to 65m at 3G-SDI, 100m at 1.5Gb/s HD, and 350m at 270Mb/s SD using Belden 1694A.
Signal Polarity Preservation: Maintains input-to-output polarity for reliable DVB-ASI transport stream distribution.
Hot-Swappable Design: Occupies one slot in the 3RU Evertz 500FR chassis with full front-access hot-swappability.
Monitoring & Status: Provides card-edge LEDs for lock, rate, bypass, maximum EQ warning, and health, with optional VistaLINK® SNMP management via 500FC.

Request a Quote

Secure checkout. Authorized partner. 100% genuine products.

Details that matter

Features & Specifications

Explore the features, technical details, and everything you need to know about this product.

Need help choosing? Talk to our experts →

Product Overview +

Compact High-Density 3G/HD/SD Signal Distribution

The Evertz 500DA-3G is a cost-effective, high-density 1x8 reclocking distribution amplifier engineered for broadcast production facilities, master control rooms, and mobile units. Designed to handle multi-rate serial digital video signals, the card automatically detects, equalizes, and reclocks standard-definition (270 Mbps), high-definition (1.5 Gbps), and 3G (3 Gbps) SDI video signals.

Flexible Non-Reclocked Mode & Signal Integrity

For multi-format distribution, the 500DA-3G features a jumper-selectable non-reclocked bypass mode. This mode allows the module to pass specialized data rates including DVB-ASI, ATSC SMPTE ST 310-1 (19.4 Mbps), and secondary SD rates (143/360/540 Mbps). Signal polarity is preserved from input to output, ensuring reliable transport stream integrity for DVB-ASI streams. Eight fully isolated output drivers eliminate cross-channel loading, removing the need to terminate unused rear BNC ports while maintaining low wideband jitter (<0.2 UI HD, <0.3 UI 3G).

Frame Integration, Diagnostics, and Control

Occupying a single slot in the 3RU Evertz 500FR frame (supporting up to 16 modules per chassis), the 500DA-3G features front-panel hot-swappability without disconnecting rear BNC cables. Card-edge LED indicators provide real-time status for rate selection, reclocker lock, bypass activation, maximum equalization threshold, and card health. When operated in a 500FR frame equipped with a 500FC Frame Controller, the card integrates into Evertz VistaLINK® SNMP monitoring networks for centralized management and status tally reporting.

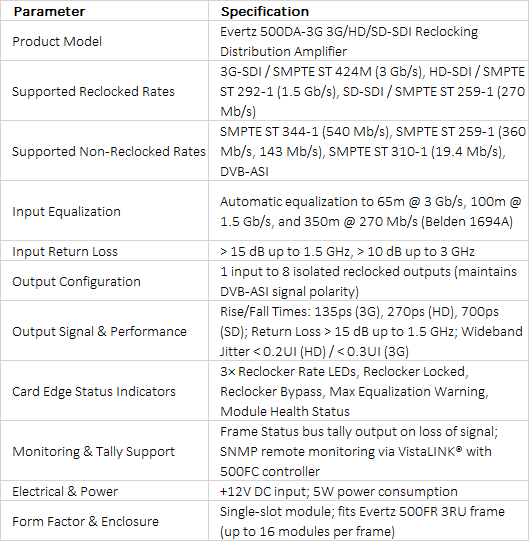

Technical Specifications +

technical specifications
