Evertz 500DA-HD / 500DA-HD-N | HD/SD-SDI Reclocking & Non-Reclocking Distribution Amplifier (1x8)

Evertz Signal Processing

Professional broadcast product designed for reliable production, streaming, and modern media workflows.

Genuine
Product

Official
Warranty

Technical
Support

Fast
Delivery

Key Features

1x8 Multi-Rate Distribution: Accepts one HD/SD serial digital input and provides eight isolated outputs without cross-channel loading.
Automatic Reclocking: Detects and reclocks HD-SDI (SMPTE ST 292-1 at 1.5Gb/s) and SD-SDI (SMPTE ST 259/344 from 143–540Mbps).
Flexible Jumper Modes: Supports DVB-ASI transport streams and non-reclocked SMPTE ST 310-1 (19.4Mbps) or non-standard rates from 143Mbps to 1.5Gb/s.
Extended Cable Equalization: Compensates for coaxial cable runs up to 110m at 1.5Gb/s and 350m at 270Mbps using Belden 1694A equivalent.
Hot-Swappable 500FR Integration: Occupies one slot in the 3RU 500FR frame, supporting up to 16 modules with tool-less front access.
Comprehensive Diagnostics: Provides card-edge status indicators and Frame Status Bus tally for signal-loss detection.
VistaLINK® SNMP Management: Enables centralized remote monitoring and control via a 500FC Frame Controller.

Request a Quote

Secure checkout. Authorized partner. 100% genuine products.

Details that matter

Features & Specifications

Explore the features, technical details, and everything you need to know about this product.

Need help choosing? Talk to our experts →

Product Overview +

Versatile HD/SD Distribution

The Evertz 500DA-HD and 500DA-HD-N are high-density 1x8 distribution amplifiers engineered for broadcast control rooms, signal ingest suites, and production facilities. Designed to process both high-definition and standard-definition serial digital signals, the cards automatically detect, equalize, and distribute HD-SDI (1.5 Gbps) and SD-SDI (143–540 Mbps) signals across eight isolated outputs.

Adaptive Operational Modes & Reclocking

To support diverse broadcast transport standards, the series provides jumper-selectable operating modes:

Reclocked Mode: Automatically locks to SMPTE ST 292-1 (1.5 Gbps) and SMPTE ST 259/344 (143 to 540 Mbps) video streams to eliminate timing jitter.
DVB-ASI Mode: Preserves signal alignment and polarity specifically for compressed MPEG transport streams.
Non-Reclocking Mode (500DA-HD-N): Bypasses the reclocking circuit to pass SMPTE ST 310 (19.4 Mbps) ATSC signals or any arbitrary data rate within the 143 Mbps to 1.5 Gbps range.

Frame Integration and Monitoring

Designed for the Evertz 500FR 3RU modular frame (holding up to 16 cards), the 500DA-HD allows complete hot-swapping from the front without disconnecting rear BNC cables. Independent output drivers remove the requirement to terminate unused rear connectors. When installed alongside a 500FC Frame Controller, engineering teams gain SNMP alarm reporting and remote status monitoring through Evertz VistaLINK®.

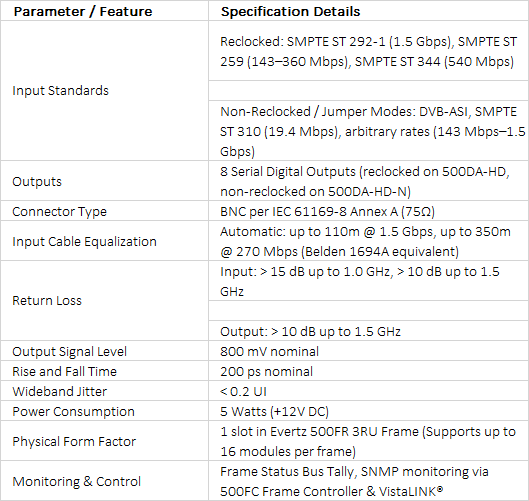

Technical Specifications +

technical specifications
