Evertz 500DA | SD-SDI & SMPTE ST 310 Reclocking Distribution Amplifier

Evertz Signal Processing

Professional broadcast product designed for reliable production, streaming, and modern media workflows.

Genuine
Product

Official
Warranty

Technical
Support

Fast
Delivery

Key Features

1x9 Reclocked Distribution: Accepts one serial digital input and provides nine isolated, reclocked outputs without signal degradation or loading.
Multi-Standard Support: Auto-detects SMPTE ST 259M signals from 143–540Mbps and DVB-ASI, with jumper-selectable SMPTE ST 310 at 19.4Mbps.
Polarity Preservation: Maintains input-to-output signal polarity across all outputs for reliable DVB-ASI transport stream compatibility.
Automatic Cable Equalization: Compensates for input cable losses up to 440m of Belden 1694A at 270Mbps.
Hot-Swappable Design: Supports front-access installation and replacement in 3RU Evertz 500FR frames without disconnecting rear BNC cabling.
Comprehensive Status Monitoring: Card-edge LEDs indicate lock status, signal rate, maximum EQ warning, and card health, with frame tally and optional VistaLINK® SNMP control via 500FC.

Request a Quote

Secure checkout. Authorized partner. 100% genuine products.

Details that matter

Features & Specifications

Explore the features, technical details, and everything you need to know about this product.

Need help choosing? Talk to our experts →

Product Overview +

High-Density SD-SDI & ST 310 Distribution

The Evertz 500DA is a cost-effective, high-density 1x9 reclocking distribution amplifier engineered for broadcast master control, headends, and signal distribution facilities. Designed to process standard-definition digital video and transport streams, the module automatically detects and reclocks SMPTE ST 259M (143 Mb/s to 540 Mb/s) and DVB-ASI signals. A simple jumper configuration enables precise reclocking for SMPTE ST 310 (19.4 Mb/s) ATSC transport streams.

Advanced Cable Equalization & Signal Integrity

To compensate for long cable runs, the 500DA incorporates high-performance automatic equalization capable of restoring signals over cable lengths up to 440 meters of Belden 1694A at 270 Mb/s (380m when installed adjacent to HD-SDI modules in a 500FR frame). The input includes an isolated return capacitively coupled to ground to reduce noise. Nine fully independent output drivers eliminate cross-channel loading, removing the need to terminate unused BNC outputs while maintaining low wideband jitter (< 0.2 UI).

Frame Integration, Diagnostics, and Control

Occupying a single slot in the 3RU Evertz 500FR frame (supporting up to 16 modules per chassis), the 500DA features complete front-panel hot-swappability without disturbing rear cabling. Diagnostic card-edge LEDs provide instant local status for reclocker lock, rate detection, max equalization limit, and module health. When paired with a 500FC Frame Controller, the 500DA offers complete remote SNMP monitoring and alarm reporting via Evertz VistaLINK®.

Technical Specifications +

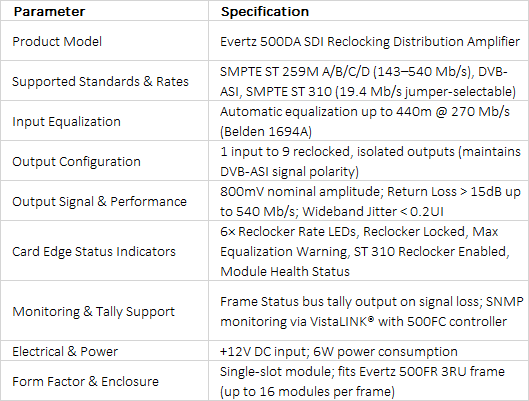

technical specifications
