Evertz 500DA2Q-3G | 3G/HD/SD-SDI Dual Reclocking Distribution Amplifier (32 1x4 DAs in 3RU)

Evertz Signal Processing

Professional broadcast product designed for reliable production, streaming, and modern media workflows.

Genuine
Product

Official
Warranty

Technical
Support

Fast
Delivery

Key Features

Dual 1x4 Distribution: Operates as two independent 1x4 SDI distribution amplifiers on one card, supporting up to 32 discrete 1x4 channels in a 3RU frame.
Multi-Rate Reclocking: Automatically detects, equalizes, and reclocks 3G-SDI (SMPTE ST 424), HD-SDI (ST 292-1), and SD-SDI (ST 259) signals.
Independent Bypass Modes: Provides jumper-selectable reclocked or non-reclocked operation per input for DVB-ASI, SMPTE ST 310 (19.4Mbps), and secondary SD rates.
Extended Cable Equalization: Supports coax runs up to 80m at 3G-SDI, 150m at 1.5Gb/s HD, and 350m at 270Mbps SD using Belden 1694A.
DVB-ASI Polarity Preservation: Maintains input-to-output signal polarity across all outputs for reliable MPEG transport stream distribution.
Hot-Swappable 500FR Integration: Occupies one slot in the Evertz 500FR frame with front-access hot-swappability.
VistaLINK® Monitoring: Provides card-edge diagnostic LEDs and remote SNMP monitoring via a 500FC Frame Controller.

Request a Quote

Secure checkout. Authorized partner. 100% genuine products.

Details that matter

Features & Specifications

Explore the features, technical details, and everything you need to know about this product.

Need help choosing? Talk to our experts →

Product Overview +

Industry-Leading Density for 3G/HD/SD Distribution

The Evertz 500DA2Q-3G is a dual-channel 3G/HD/SD-SDI reclocking distribution amplifier engineered for space-critical broadcast applications, production trucks, and master control environments. By packing two independent 1x4 distribution amplifiers onto a single card, it enables high-density configurations of up to 32 individual 1x4 DAs within a single 3RU Evertz 500FR frame.

Flexible Dual-Channel Processing & Signal Integrity

Each input channel on the 500DA2Q-3G features independent auto-equalization and reclocking logic. The module automatically locks to 3Gbps (SMPTE ST 424), 1.5Gbps HD (SMPTE ST 292-1), and 270Mbps SD (SMPTE ST 259) signals. For non-standard video rates or compressed transport streams, each channel can be independently set via hardware jumpers to non-reclocking bypass mode—enabling clean transmission of DVB-ASI, SMPTE ST 310 (19.4 Mbps), and SMPTE ST 344 (540 Mbps) data without jitter degradation.

Diagnostic Monitoring and Frame Management

Designed for the Evertz 500FR 3RU modular frame, the 500DA2Q-3G supports full hot-swappability without disturbing rear cabling. Each output driver is isolated to prevent cross-channel loading, eliminating the need to terminate unused rear BNC connectors. Card-edge LEDs provide real-time diagnostic status for reclocker lock, selected rate, bypass activation, and module health. When integrated into a frame with a 500FC Frame Controller, status tally warnings and remote SNMP monitoring are available via Evertz VistaLINK®.

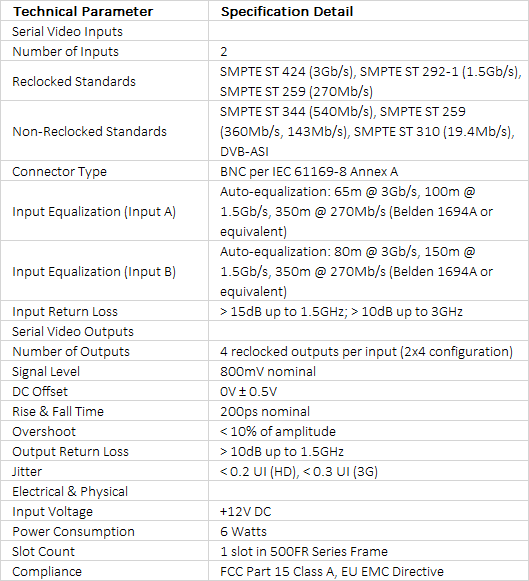

Technical Specifications +

technical specifications
