Evertz

Evertz 500DA2Q-HD / 500DA2Q-HD-N | HD/SD-SDI Dual Reclocking & Non-Reclocking Distribution Amplifier (32 1x4 DAs in 3RU)

Evertz Signal Processing

Professional broadcast product designed for reliable production, streaming, and modern media workflows.

Genuine
Product

Official
Warranty

Technical
Support

Fast
Delivery

Key Features

Flexible 1x8 / 2x4 Distribution: Configurable as two independent 1x4 DAs or one 1x8 DA, supporting up to 32 discrete 1x4 DAs in a 3RU frame.
Multi-Rate Reclocking: Automatically detects, equalizes, and reclocks 1.5Gb/s HD-SDI (SMPTE ST 292-1), SD-SDI (ST 259, 143–360Mbps), and SMPTE ST 344 (540Mbps).
Independent Bypass Modes: Separate jumper settings per channel support non-reclocked pass-through for DVB-ASI, SMPTE ST 310 (19.4Mbps), and secondary rates from 143Mbps to 1.5Gb/s.
Automatic Cable Equalization: Supports coaxial runs up to 100m on Input A and 90m on Input B at 1.5Gb/s using Belden 1694A equivalent.
Isolated Output Drivers: Eliminates cross-channel loading and removes the need to terminate unused rear BNC connectors.
Hot-Swappable 500FR Integration: Occupies one slot in the Evertz 500FR frame with front-access hot-swappability.
VistaLINK® SNMP Management: Provides card-edge status LEDs and remote monitoring/control via a 500FC Frame Controller.

Request a Quote

Secure checkout. Authorized partner. 100% genuine products.

Details that matter

Features & Specifications

Explore the features, technical details, and everything you need to know about this product.

Need help choosing? Talk to our experts →

Product Overview +

High-Density Dual HD/SD Signal Distribution

The Evertz 500DA2Q-HD and 500DA2Q-HD-N are dual-channel HD/SD-SDI reclocking and non-reclocking distribution amplifiers designed for high-density broadcast environments, production trucks, and master control facilities. By packing two complete distribution amplifiers onto a single card, up to 32 individual 1x4 DAs can be housed within a single 3RU Evertz 500FR frame (up to 16 cards per chassis).

Flexible Configuration & Protocol Support

The module offers versatile operational modes:

2x4 Dual-Channel Mode: Functions as two distinct 1x4 distribution amplifiers with independent auto-equalization and selectable reclocking per channel.
1x8 Single-Channel Mode: Routes Input A across all 8 outputs for high-fanout signal distribution.
Reclocked & Bypass Modes: Reclocks 1.5 Gbps HD-SDI, SD-SDI, and 540 Mbps SMPTE ST 344 video streams. Individual jumpers enable non-reclocked bypass for ATSC SMPTE ST 310 (19.4 Mbps), DVB-ASI transport streams, or non-standard rates between 143 Mbps and 1.5 Gbps.

Diagnostics and Centralized Control

All output drivers are isolated to maintain signal integrity without requiring termination on unused BNC ports. On-board card-edge diagnostic LEDs indicate module health, 2x4 mode operation, rate detection, carrier presence, and reclocker lock for each channel. When integrated into a 500FR frame equipped with a 500FC Frame Controller, input loss triggers a frame status bus tally, enabling remote SNMP monitoring through Evertz VistaLINK®.

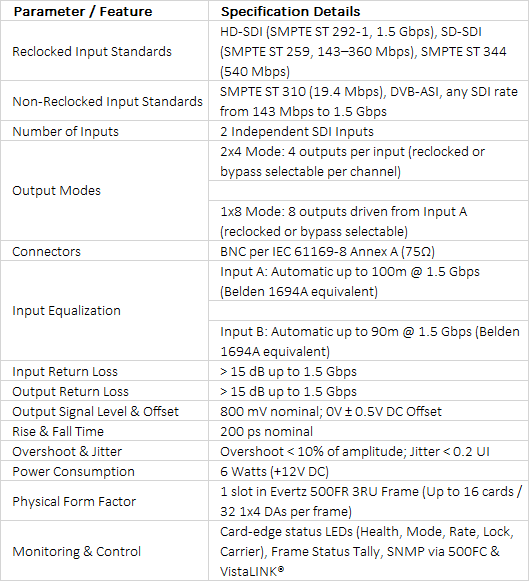

Technical Specifications +

technical specifications
