Evertz 500DA2Q-HD | HD/SD-SDI Dual Reclocking Distribution Amplifier (32 1x4 DAs in 3RU)

Evertz Signal Processing

Professional broadcast product designed for reliable production, streaming, and modern media workflows.

Genuine
Product

Official
Warranty

Technical
Support

Fast
Delivery

Key Features

Flexible 1x8 / 2x4 Distribution: Configurable as two independent 1x4 DAs or one 1x8 DA, supporting up to 32 discrete 1x4 channels in a 3RU frame.
Multi-Rate Reclocking: Automatically detects, equalizes, and reclocks 1.5Gb/s HD-SDI (SMPTE ST 292-1), SD-SDI (ST 259, 143–360Mbps), and SMPTE ST 344 (540Mbps).
Selectable Bypass Mode: Supports non-reclocked pass-through for DVB-ASI, SMPTE ST 310 (19.4Mbps), and secondary SDI rates from 143Mbps to 1.5Gb/s.
Flexible Operating Modes: Switches between dual-input 2x4 distribution and single-input 1x8 high-fanout operation.
Automatic Cable Equalization: Supports coaxial cable runs up to 100m on Input A and 90m on Input B at 1.5Gb/s using Belden 1694A.
Hot-Swappable 500FR Integration: Occupies one slot in the Evertz 500FR frame with front-access hot-swappability.
VistaLINK® SNMP Management: Provides card-edge diagnostics and remote monitoring via a 500FC Frame Controller.

Request a Quote

Secure checkout. Authorized partner. 100% genuine products.

Details that matter

Features & Specifications

Explore the features, technical details, and everything you need to know about this product.

Need help choosing? Talk to our experts →

Product Overview +

High-Density HD/SD Signal Distribution

The Evertz 500DA2Q-HD is a dual-channel HD/SD-SDI reclocking distribution amplifier designed for broadcast facilities, production trucks, and master control environments requiring maximum signal density. By packing two complete distribution amplifiers into a single card slot, it allows up to 32 separate 1x4 DAs to be housed within a 3RU Evertz 500FR frame (holding up to 16 modules).

Versatile Processing & Dynamic Routing

The module features configurable operational modes, allowing it to function as two separate 1x4 distribution amplifiers or as a single 1x8 distribution amplifier driven from Input A. In dual mode, each channel operates independently with dedicated auto-equalization and reclocking circuitry. The unit automatically locks onto 1.5 Gbps HD (SMPTE ST 292-1), SD (SMPTE ST 259), and 540 Mbps (SMPTE ST 344) signals. For non-standard or compressed formats like DVB-ASI or SMPTE ST 310 (19.4 Mbps), individual jumpers enable non-reclocking bypass mode across the entire 143 Mbps to 1.5 Gbps range.

Isolated Outputs, Diagnostics, and Control

All output drivers are fully isolated to prevent cross-channel loading, eliminating the need to terminate unused BNC connectors. The card includes comprehensive card-edge status LEDs displaying module health, 2x4/1x8 mode status, rate detection, carrier presence, and reclocker lock. When deployed in a 500FR frame equipped with a 500FC Frame Controller, signal loss tally alarms and remote SNMP monitoring are available via Evertz VistaLINK®.

Technical Specifications +

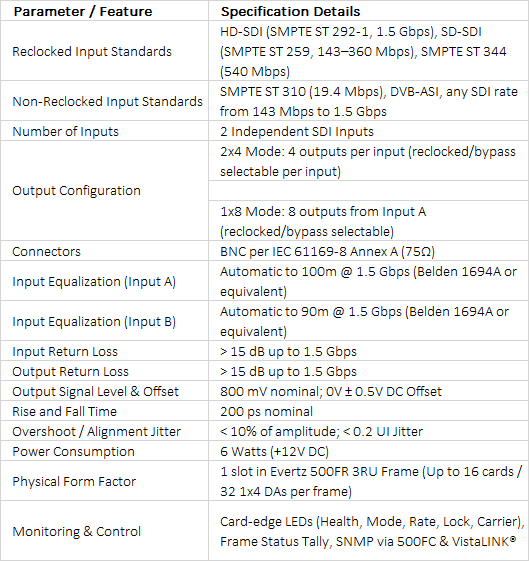

technical specifications
