Evertz 500FC-DA-HD 500-Series Frame Controller with HD/SD Reclocking DA

Evertz Video Router

Professional broadcast product designed for reliable production, streaming, and modern media workflows.

Genuine
Product

Official
Warranty

Technical
Support

Fast
Delivery

Key Features

SNMP Controller & DA: Combines frame control with 1×8 reclocking distribution in Slot 1 of 500FR frames.
Network & Serial Control: Supports VistaLINK PRO, 10/100Base-TX RJ-45, and card-edge RS-232 control.
HD/SD-SDI Support: Auto-detects SMPTE ST 292-1, SMPTE ST 259, and DVB-ASI signals.
Input Equalization: 1 BNC input with compensation up to 140m at 1.5Gbps and 350m at 270Mbps using Belden 1694A.
Reclocked Outputs: Provides 8 isolated BNC outputs with independent drivers to prevent cross-channel loading.
Configurable Modes: Supports DVB-ASI and non-reclocking operation via VistaLINK software.
Hardware Diagnostics: Monitors chassis status, module insertion/removal, and firmware updates.

Pricing Dhs. 0.00

Request a Quote

Secure checkout. Authorized partner. 100% genuine products.

Details that matter

Features & Specifications

Explore the features, technical details, and everything you need to know about this product.

Need help choosing? Talk to our experts →

Product Overview +

Combined Network Management & HD Signal Distribution

The Evertz 500FC-DA-HD consolidates frame controller capabilities and SDI signal distribution into a single slot inside Evertz 500-series modular chassis. Designed to occupy Slot 1 of the 500FR frame, it establishes a central SNMP gateway for all installed cards while simultaneously functioning as a 1x8 reclocking distribution amplifier for HD-SDI and SD-SDI video feeds.

Dual-Function SDI Distribution Amplifier

The built-in distribution amplifier accepts one multi-rate SDI input and delivers eight reclocked, isolated outputs:

Auto-Rate Detection: Automatically locks to standard-definition (143–540Mbps) or high-definition (1.5Gbps) SDI video streams.
Extended Cable Equalization: Features long-reach automatic input equalization up to 140m at 1.5Gbps using Belden 1694A coaxial cable.
Flexible Modes: Easily switch between reclocked SDI, DVB-ASI, or bypass (non-reclocked) modes using VistaLINK PRO control interfaces.

Standalone SNMP Infrastructure

Functions as a true, native SNMP agent on local Ethernet networks without requiring secondary software servers or external translator bridges. Operators can set network parameters using the card-edge RS-232 serial connection, while front and rear LED indicators display operational status, link activity, and port speed.

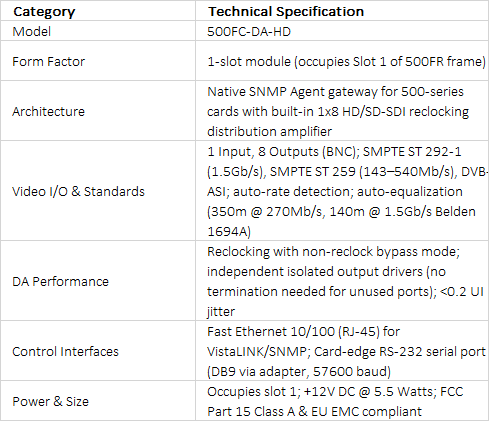

Technical Specifications +

technical specifications
