Evertz 500FC-DA-HD | Frame Controller with HD/SD-SDI Reclocking Distribution Amplifier

Evertz Signal Processing

Professional broadcast product designed for reliable production, streaming, and modern media workflows.

Genuine
Product

Official
Warranty

Technical
Support

Fast
Delivery

Key Features

Integrated Controller & DA: Combines a VistaLINK® SNMP frame controller with an 8-output HD/SD-SDI distribution amplifier on one module.
Dedicated Slot 1 Controller: Occupies slot 1 of the Evertz 500FR frame and provides network configuration, control, and monitoring for installed 500-series cards.
Multi-Standard HD/SD Distribution: Automatically detects, equalizes, and reclocks 1.5Gb/s HD-SDI (SMPTE ST 292-1), SD-SDI (ST 259, 143–540Mbps), and DVB-ASI signals across eight outputs.
Auto-Negotiating Ethernet: Provides an RJ-45 10Base-T/100Base-TX interface with full/half-duplex support for VistaLINK® NMS communication.
Extended Cable Equalization: Supports coaxial runs up to 140m at 1.5Gb/s and 350m at 270Mbps using Belden 1694A equivalent.
Front Hot-Swappable Design: Supports front-access replacement without disconnecting rear BNC connections.
RS-232 & Status Monitoring: Provides card-edge RS-232 control and status LEDs for local diagnostics and management.

Request a Quote

Secure checkout. Authorized partner. 100% genuine products.

Details that matter

Features & Specifications

Explore the features, technical details, and everything you need to know about this product.

Need help choosing? Talk to our experts →

Product Overview +

Integrated Centralized Management & Distribution

The Evertz 500FC-DA-HD is a dual-purpose frame controller and high-performance distribution amplifier engineered specifically for the Evertz 500FR 3RU frame architecture. By integrating network control and 1x8 signal distribution onto a single slot-1 card, it saves valuable chassis space while providing centralized remote monitoring and video signal distribution for broadcast control rooms and mobile production trucks.

VistaLINK® Network Controller & SNMP Gateway

Serving as the master communications hub for the 500FR chassis, the 500FC-DA-HD bridges all installed VistaLINK®-enabled cards to your Network Management System (NMS). Utilizing an auto-negotiating 10Base-T/100Base-TX Ethernet port, it communicates via Simple Network Management Protocol (SNMP) to deliver real-time frame health, card insertion/removal logging, software firmware status, and signal loss alarms. Initial network parameters are easily set via an RS-232 serial setup port located directly at the card edge.

On-Board HD/SD-SDI Reclocking DA

In addition to frame management, the module functions as a 1x8 auto-equalized, reclocking distribution amplifier. It supports SMPTE ST 292-1 (1.5 Gbps HD-SDI), SMPTE ST 259 (143 to 540 Mbps SD-SDI), and DVB-ASI transport streams. Through VistaLINK® control, the reclockers can be configured for bypass mode to accommodate non-standard bit rates. All eight outputs feature independent isolated drivers to prevent cross-channel loading, eliminating the need to terminate unused rear BNC connectors.

Technical Specifications +

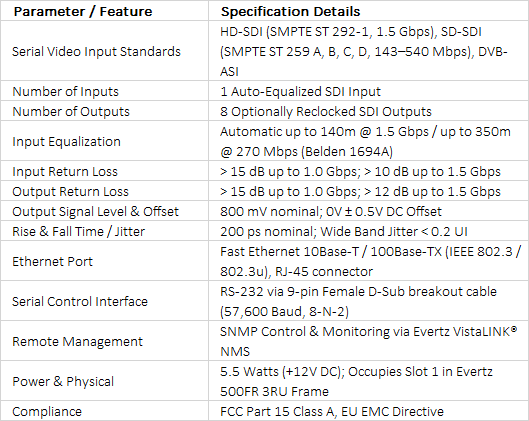

technical specifications
