Evertz 500FC VistaLINK Frame Controller | SNMP Ethernet Network Manager Card

Evertz Signal Processing

Professional broadcast product designed for reliable production, streaming, and modern media workflows.

Genuine
Product

Official
Warranty

Technical
Support

Fast
Delivery

Key Features

Native SNMP Agent: Provides direct Ethernet-to-frame communication without external translation servers or PC software.
VistaLINK Management: Enables remote monitoring, configuration, and status control via Evertz VistaLINK SNMP software.
Auto-Negotiating Ethernet: Supports 10Base-T and 100Base-TX with automatic full/half-duplex selection.
Real-Time Diagnostics: Monitors power supply health, chassis status, and card insertion/removal activity.
Diagnostic LEDs: Front and rear LEDs indicate module health, network link, speed, and activity.
Slot 1 Integration: Designed for slot 1 of Evertz 500FR, 500FR-L-A, and 500FR-L-D frames.
RJ-45 Connectivity: Provides a rear-panel Ethernet port for standard network connections.

Pricing Dhs. 0.00

Request a Quote

Secure checkout. Authorized partner. 100% genuine products.

Details that matter

Features & Specifications

Explore the features, technical details, and everything you need to know about this product.

Need help choosing? Talk to our experts →

Product Overview +

Direct Network Gateway for Modular Systems

The Evertz 500FC VistaLINK Frame Controller serves as the central communication hub for Evertz 500 series processing frames. Acting as a true native SNMP agent, the 500FC connects directly to standard local area networks without relying on intermediate translation servers or software gateways. By installing the 500FC into slot 1 of a 500FR frame, engineering teams gain single-point access to remotely manage, configure, and monitor every VistaLINK-enabled processing card within the chassis.

Real-Time Monitoring and Diagnostic Control

Equipped with an auto-negotiating 10/100Base-TX RJ-45 Ethernet port, the 500FC delivers fast, reliable data transfers to network management systems (NMS). Through VistaLINK software, the controller aggregates vital telemetry across the entire frame—including primary and backup power supply health, card insertion/removal logs, and firmware build data. Front-panel and rear-panel LED arrays supply immediate local status verification for frame health, Ethernet link speed, and network traffic.

Universal Compatibility Across 500 Series Enclosures

Designed to protect long-term equipment investments, the 500FC is built for deployment across various Evertz 500 series chassis options, including the 500FR, 500FR-L-A, and 500FR-L-D frames. Taking up just a single slot, it leaves maximum frame capacity available for core audio, video, and signal processing cards while ensuring robust network supervision for broadcast control rooms and transmission hubs.

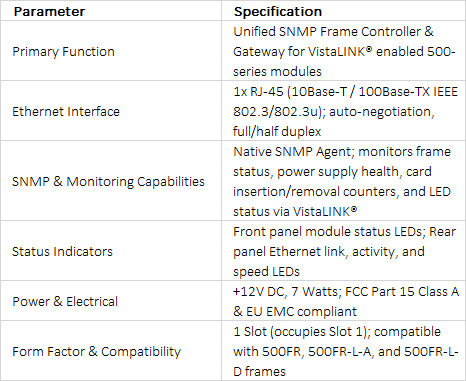

Technical Specifications +

technical specifications
